Official 2026 Technical Catalog

Download SV Pack Complete Product Catalog

Access our comprehensive 41-page technical brochure including complete dimension drawings, power requirements, throughput ratings, and consumable specifications.

Download PDF Catalog (1.8 MB)View Online Below
File format: PDF • Pages: 41 • File Size: 1.8 MB • Publisher: Shri Vishwakarma Packaging Solutions
Catalog Structure

What's Inside the 41 Pages

Every machine is accompanied by detailed electrical ratings, strap/film dimension limits, and production capacities.

Pages 1 - 5

Strapping Machines

Automatic SVP101F, Semi-Auto SVP740H Deluxe, Feather Touch SVP360H, Table Top & Low Table Top Models.

Technical Specs & Diagrams
Pages 6 - 10

Carton Sealing Systems

SVP102 TRF Packing Line, Small & Standard Carton Taping, Pneumatic Auto-Flap Folding Sealers.

Technical Specs & Diagrams
Pages 11 - 15

L-Sealers & Cutting

Manual L-Sealers, Semi-Automatic L-Sealers SPLS-504A with motorized outfeed mesh.

Technical Specs & Diagrams
Pages 16 - 20

Liquid & Paste Filling

Piston volumetric liquid fillers, cream/paste hoppers, automatic water & milk pouch bagging.

Technical Specs & Diagrams
Pages 21 - 23

Shrink Tunnels & Web Sealers

SPS-4525 high-heat recirculating tunnels, bottle neck label shrinkers, heavy-duty web bundlers SPWS-6540.

Technical Specs & Diagrams
Pages 24 - 26

Continuous Band Sealers

Heavy-duty horizontal SPCS-900, vertical liquid pouch sealers, nitrogen air flushing SPCS-900AF, pedal sealers.

Technical Specs & Diagrams
Pages 27 - 29

Vacuum Packaging Machines

Single chamber SPVP-400, double chamber heavy industrial food and pulse preservation vacuum chambers.

Technical Specs & Diagrams
Pages 30 - 32

Stretch Wrapping Machinery

Pallet stretch wrappers SPSW-2100 with 300% power pre-stretch, reel / paper roll wrappers, box stretchers.

Technical Specs & Diagrams
Pages 33 - 35

Material Handling Equipment

Hydraulic hand pallet trucks (2500kg & 3000kg), manual stackers, semi-electric lifters.

Technical Specs & Diagrams
Pages 36 - 38

Conveyor Systems

Heavy-duty gravity roller conveyors, expandable flexible scissor accordion conveyors, powered conveyors.

Technical Specs & Diagrams
Page 39

Specialized Machinery

Automatic plastic cap closing & pressing machines.

Technical Specs & Diagrams
Page 40

Packaging Consumables & 24/7 Helpline

PP rolls, POF/PVC shrink films, stretch wrap, aluminum foil wads, PET rolls, tapes, pouches & 24/7 Helpline.

Technical Specs & Diagrams

Online Catalog Document Viewer

SV-PACK-CATLOG.pdf (41 Pages)

Direct Download
Fit

Scroll through all 41 pages. Use zoom to read small specifications.

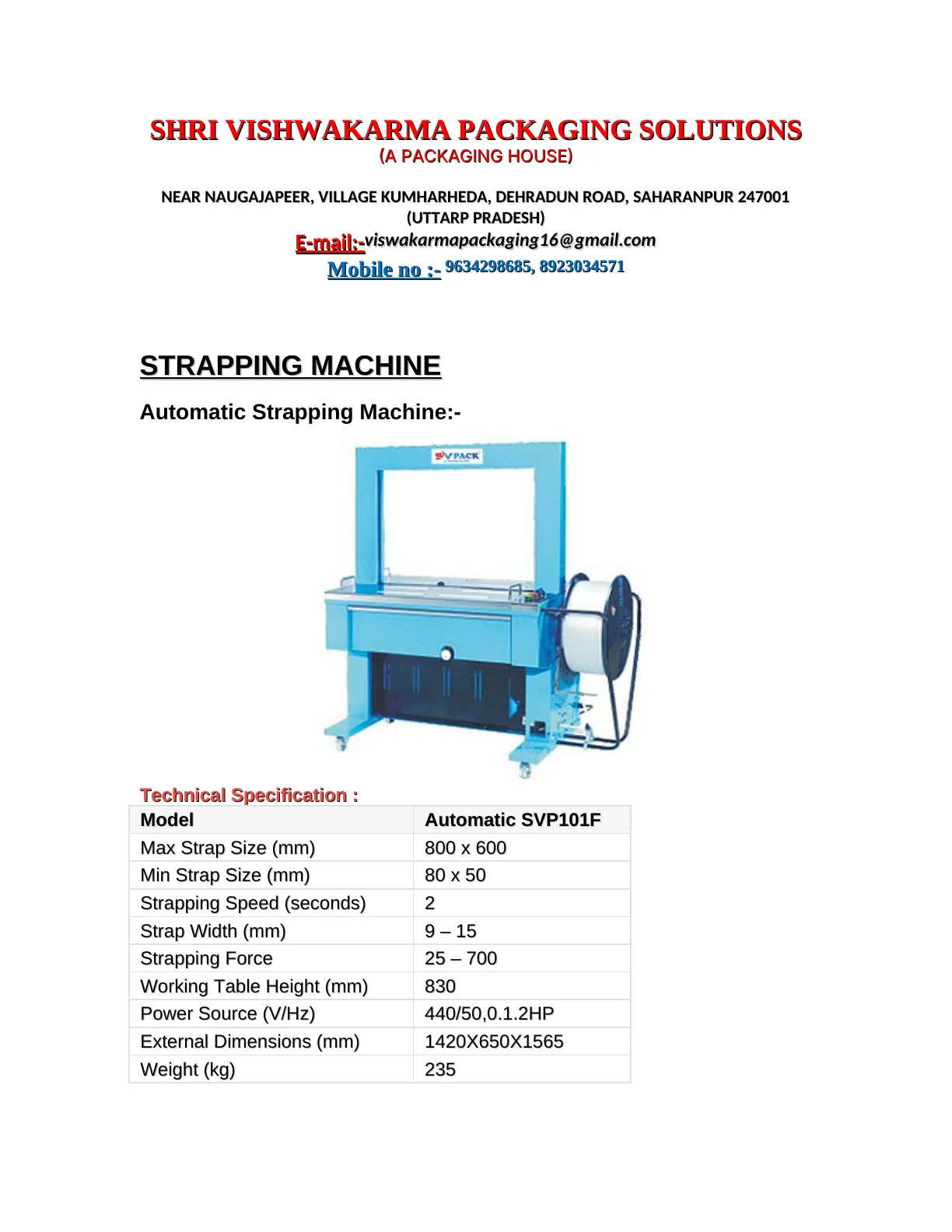

SVPACK catalogue, page 1. Full page text is available below the viewer.
Page 1 of 41

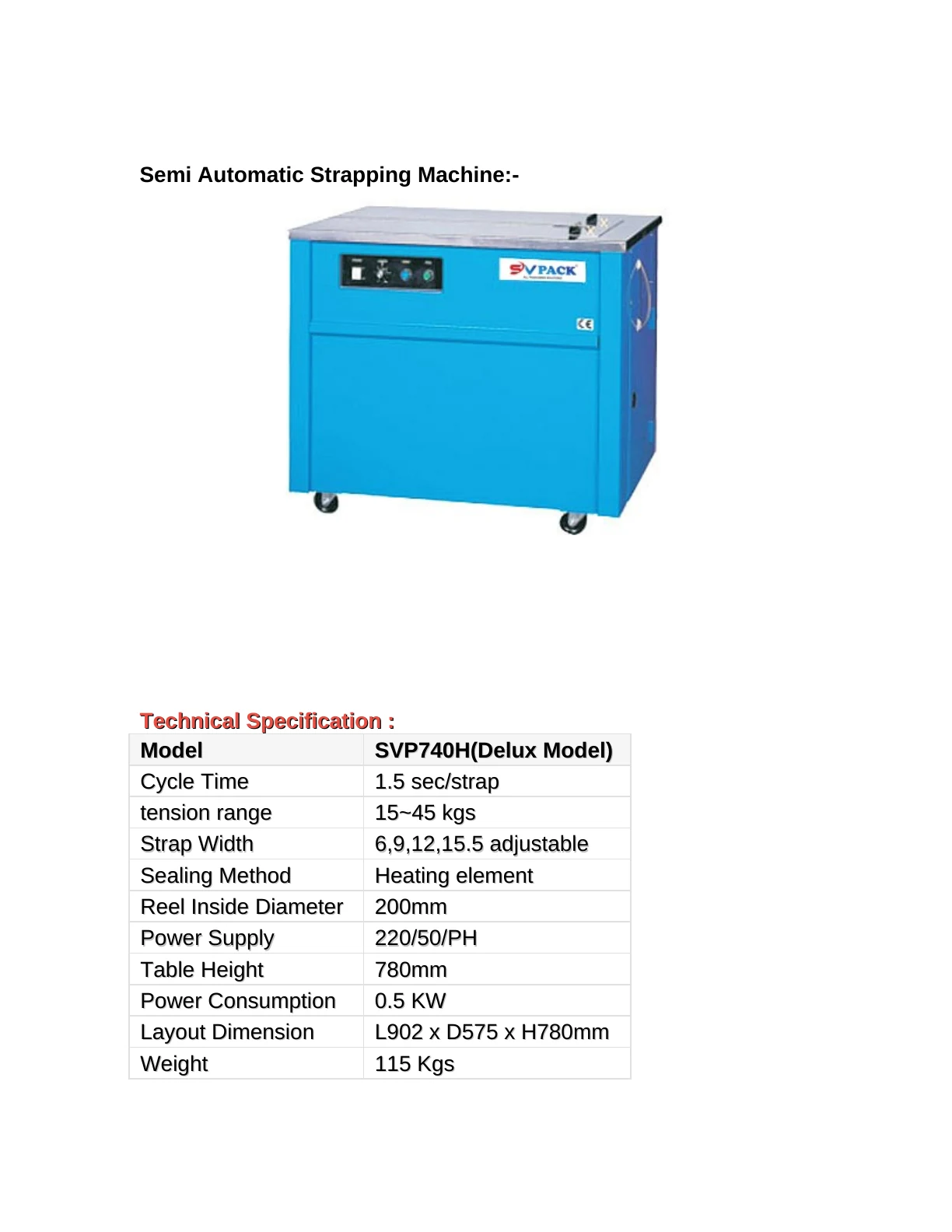

SVPACK catalogue, page 2. Full page text is available below the viewer.
Page 2 of 41

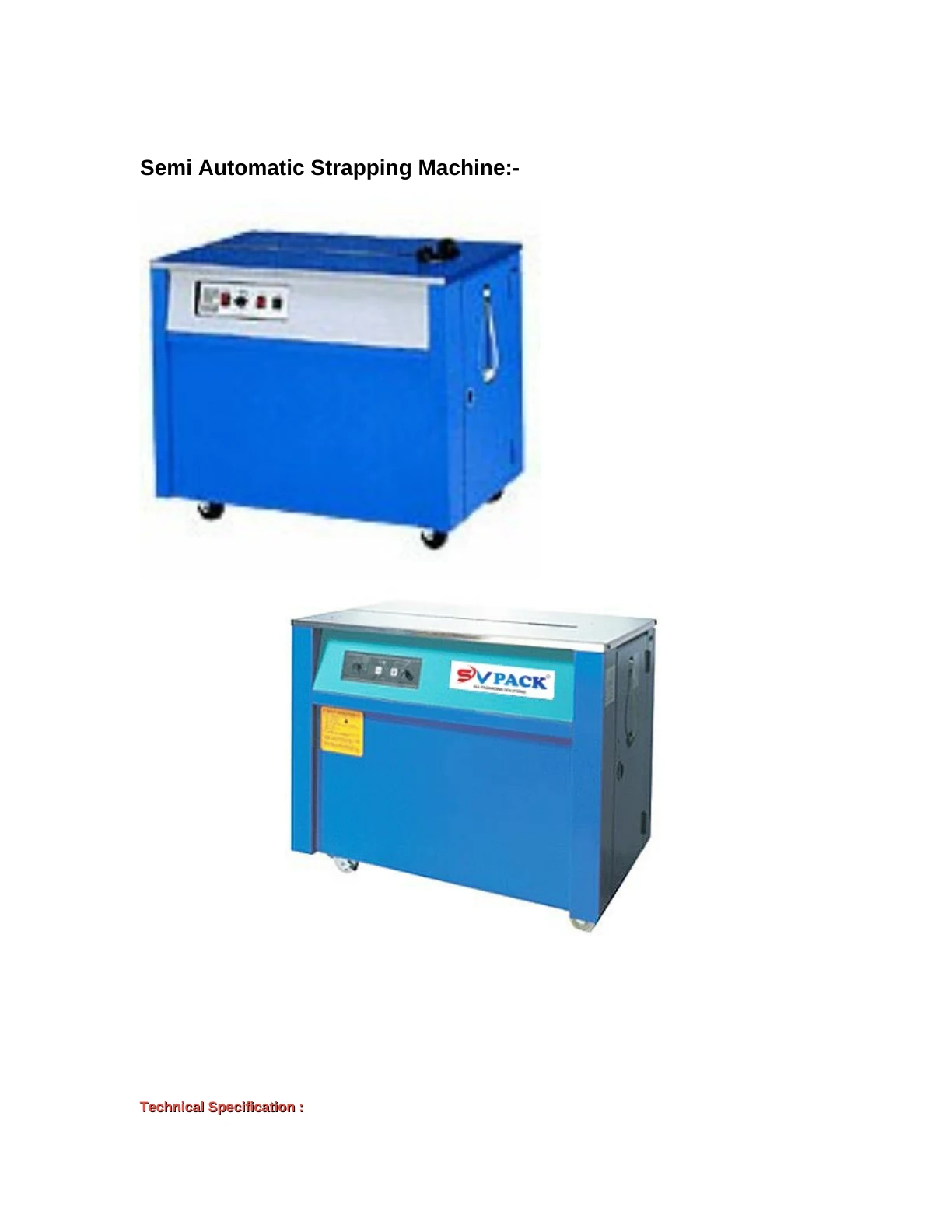

SVPACK catalogue, page 3. Full page text is available below the viewer.
Page 3 of 41

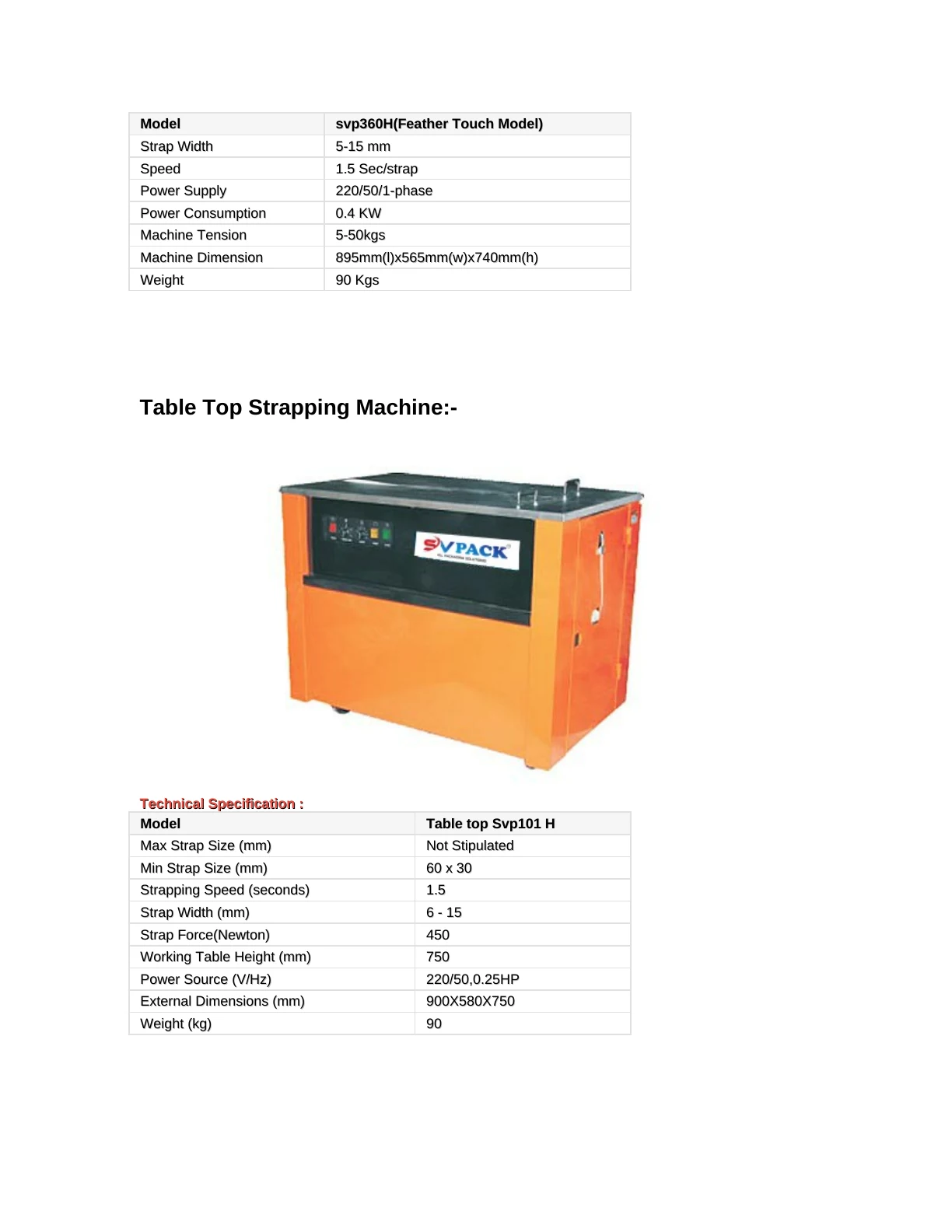

SVPACK catalogue, page 4. Full page text is available below the viewer.
Page 4 of 41

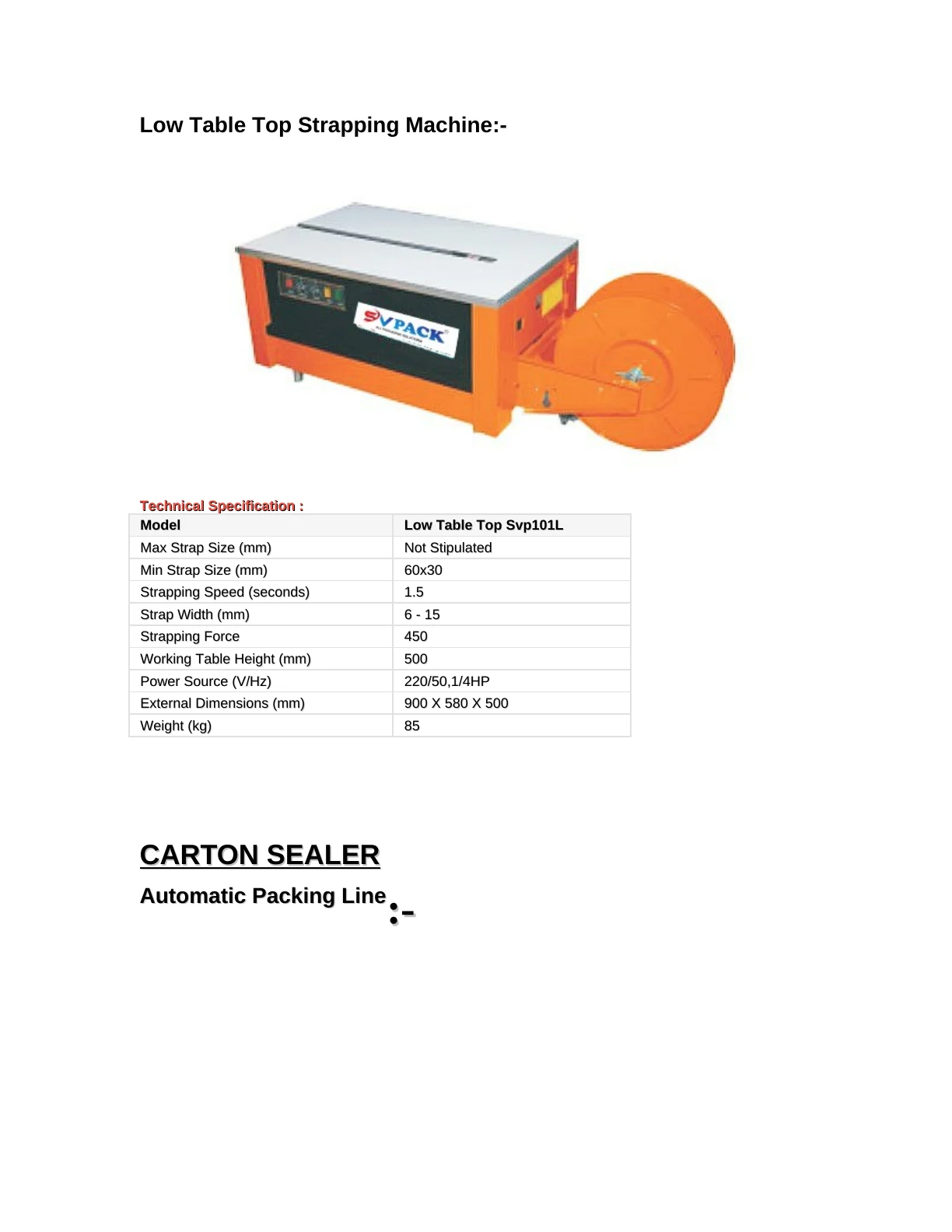

SVPACK catalogue, page 5. Full page text is available below the viewer.
Page 5 of 41

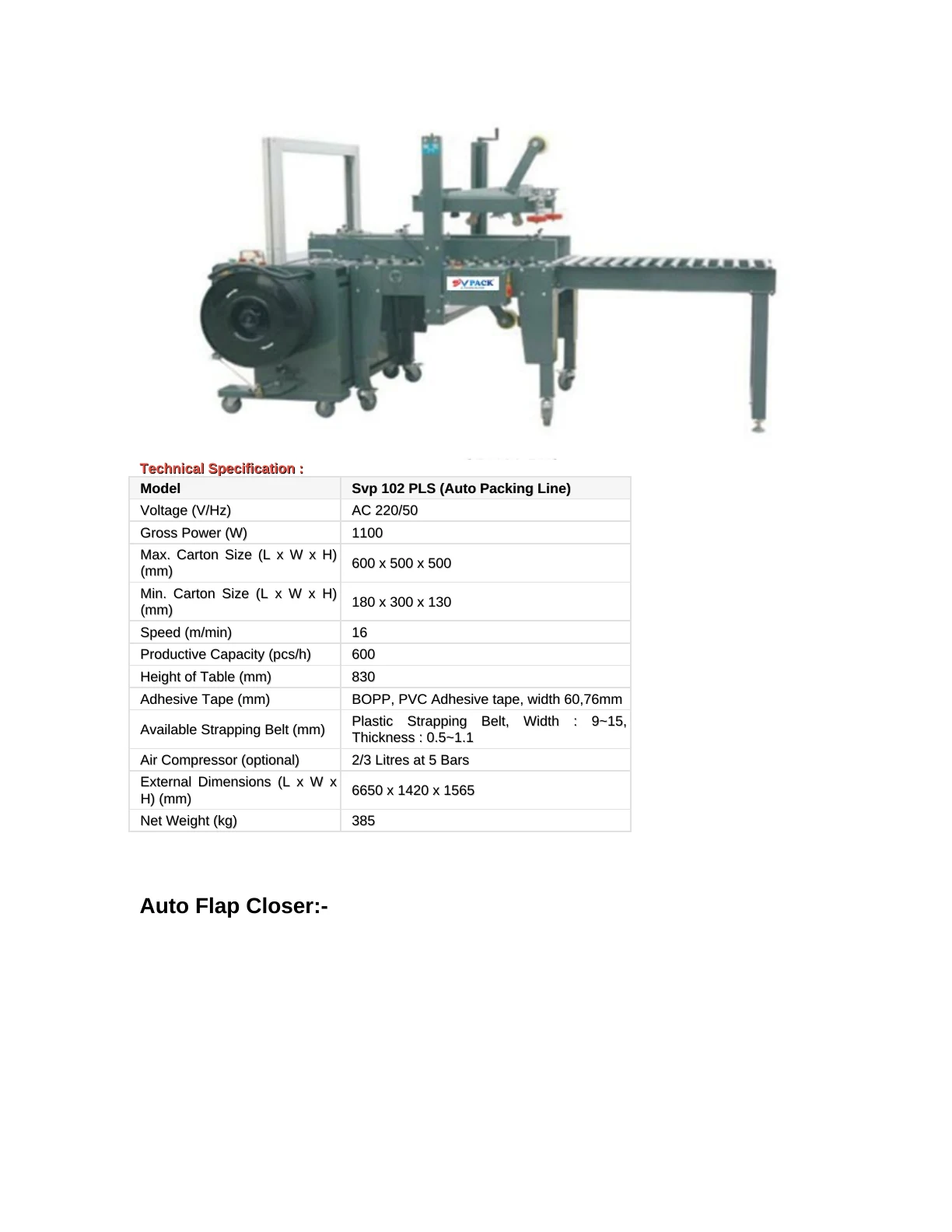

SVPACK catalogue, page 6. Full page text is available below the viewer.
Page 6 of 41

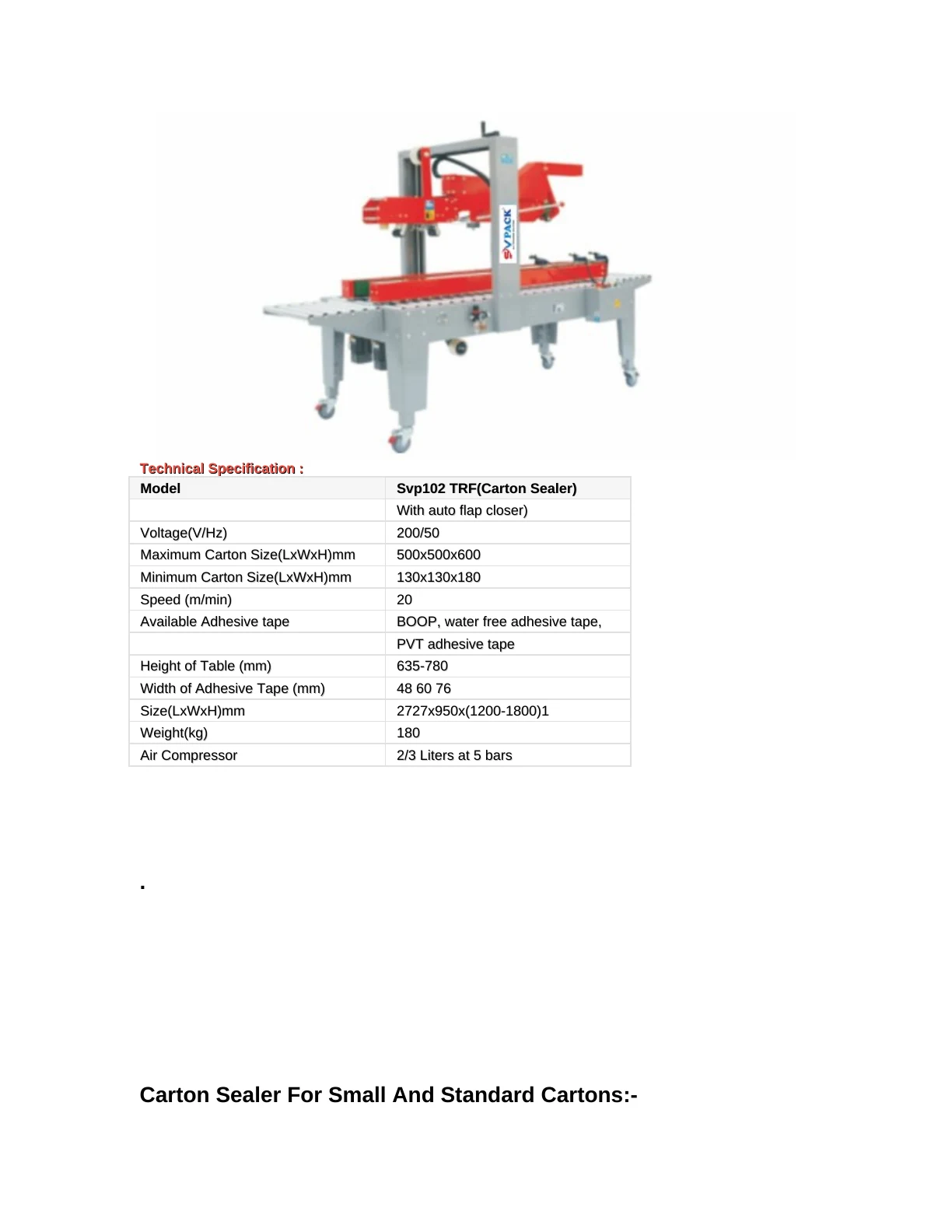

SVPACK catalogue, page 7. Full page text is available below the viewer.
Page 7 of 41

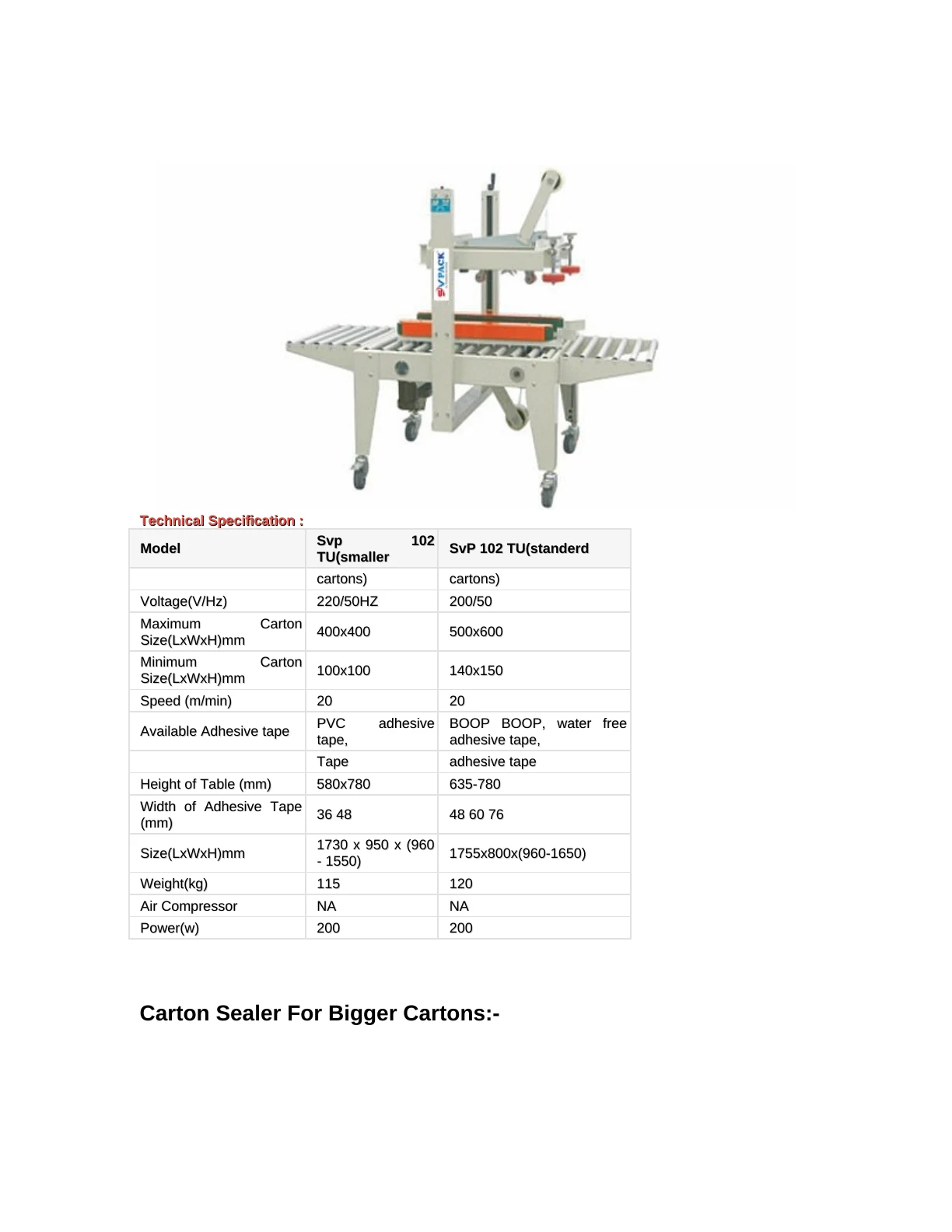

SVPACK catalogue, page 8. Full page text is available below the viewer.
Page 8 of 41

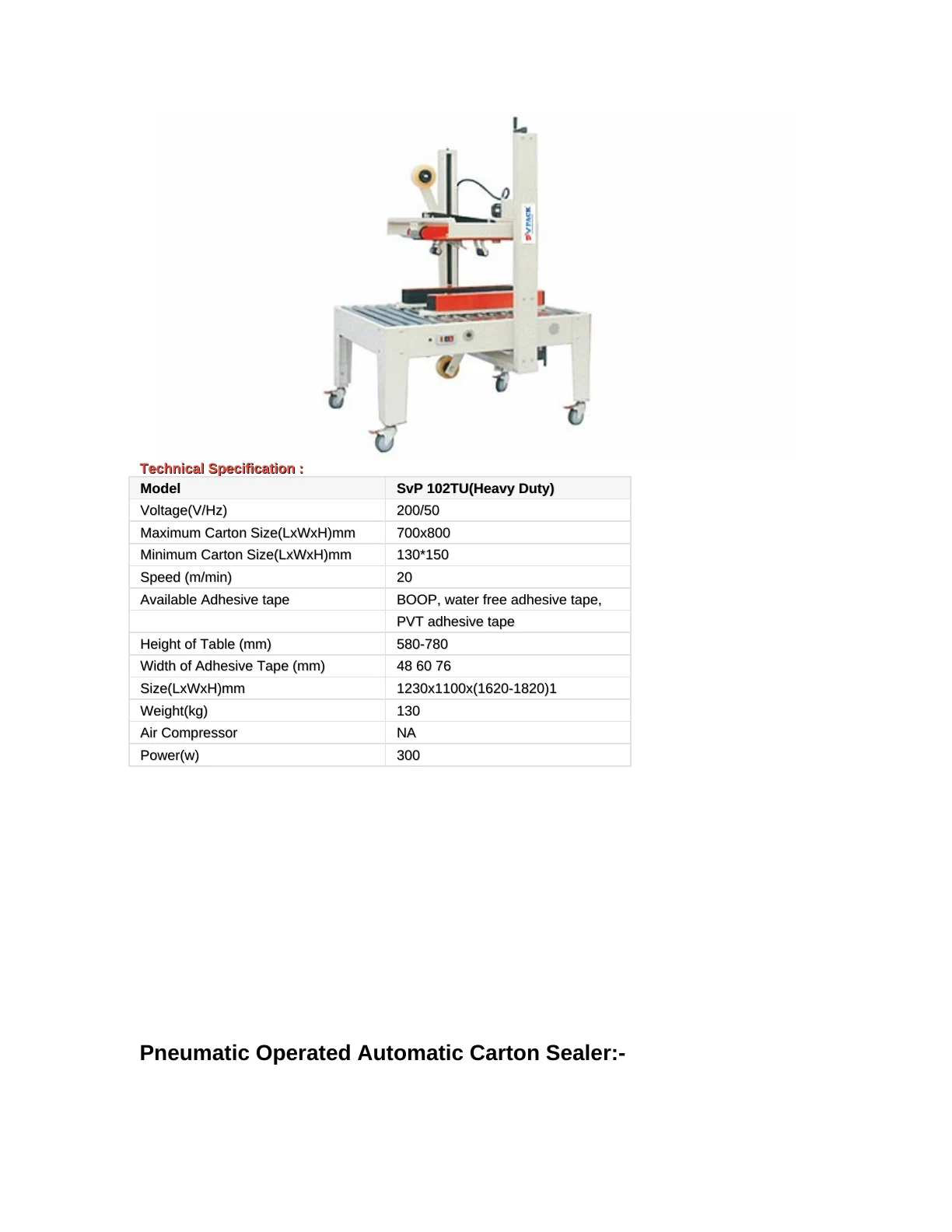

SVPACK catalogue, page 9. Full page text is available below the viewer.
Page 9 of 41

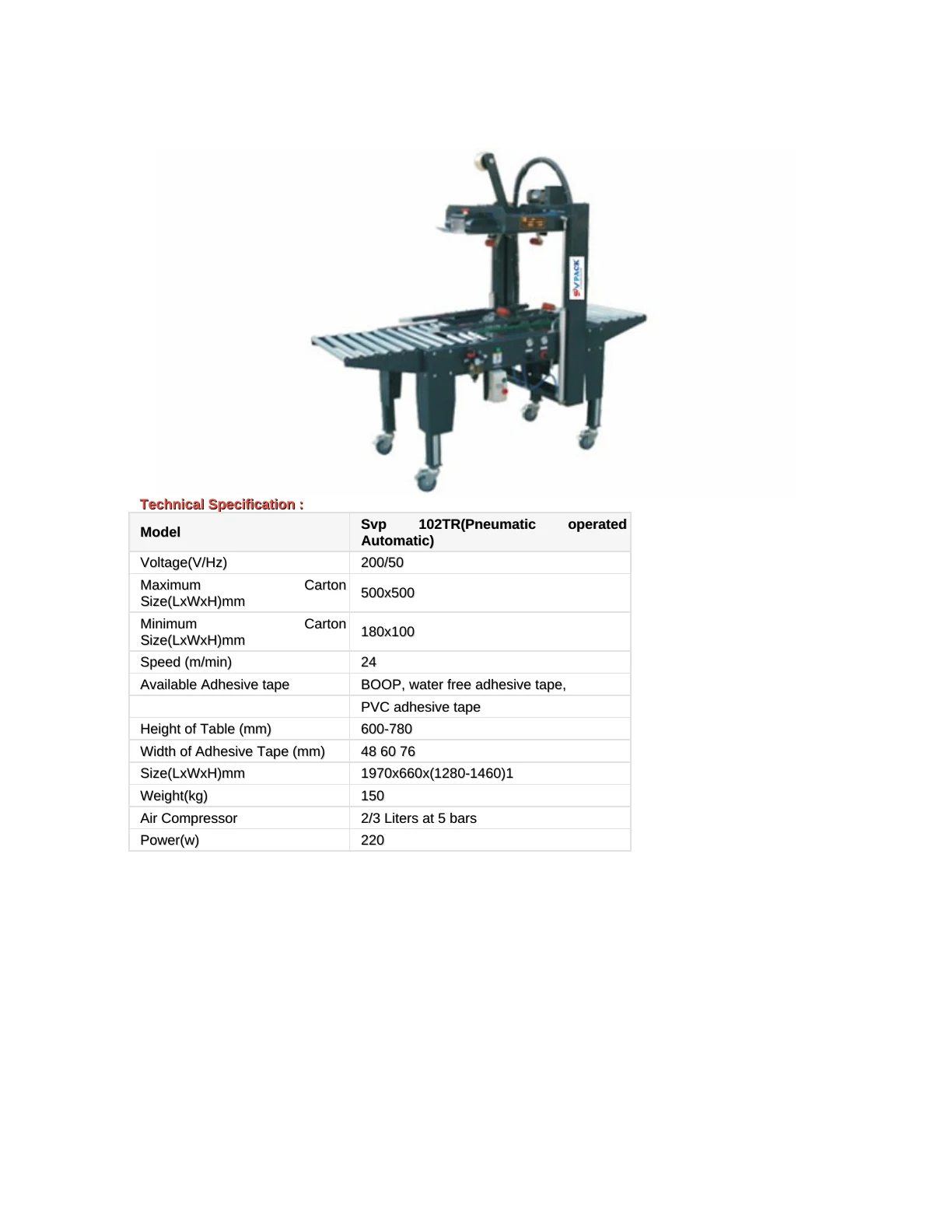

SVPACK catalogue, page 10. Full page text is available below the viewer.
Page 10 of 41

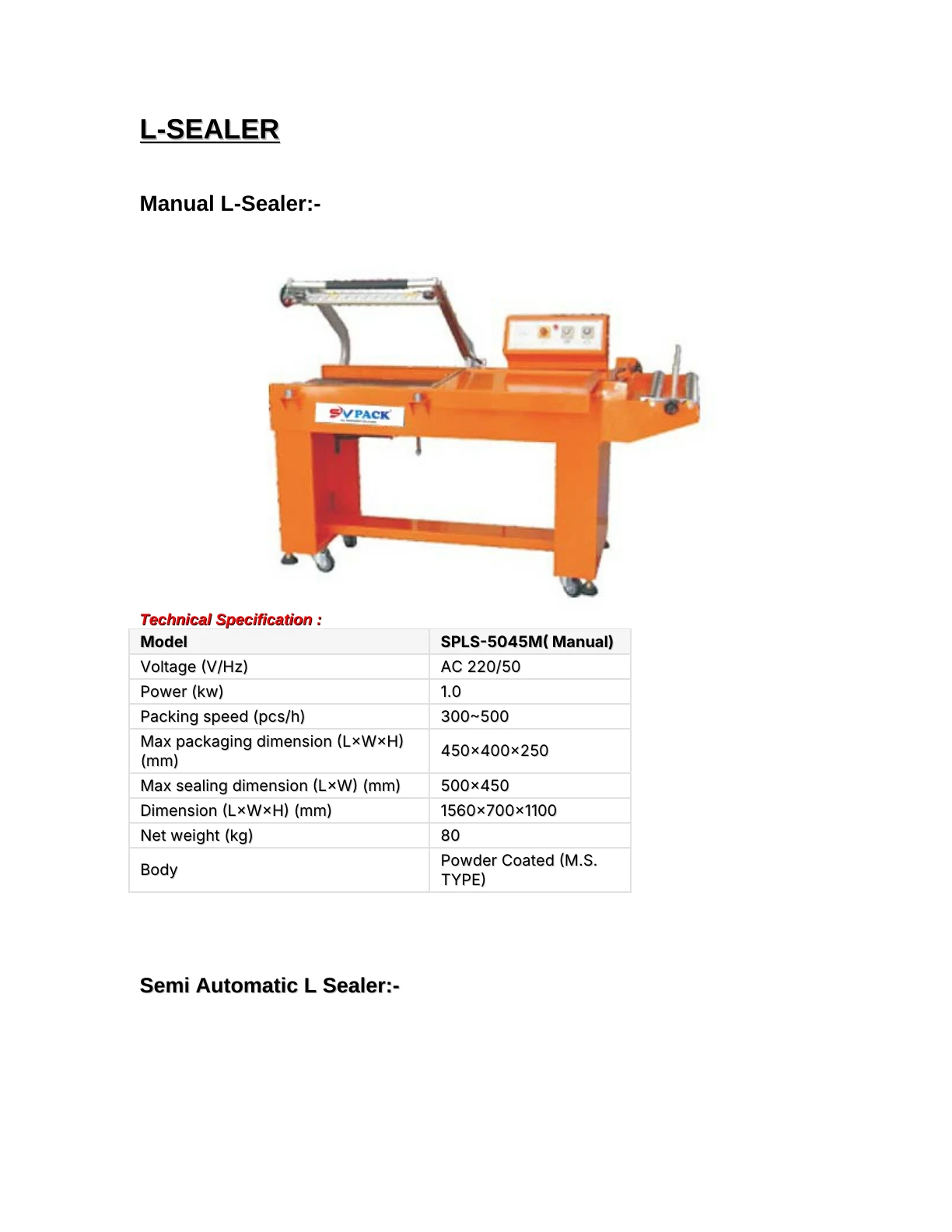

SVPACK catalogue, page 11. Full page text is available below the viewer.
Page 11 of 41

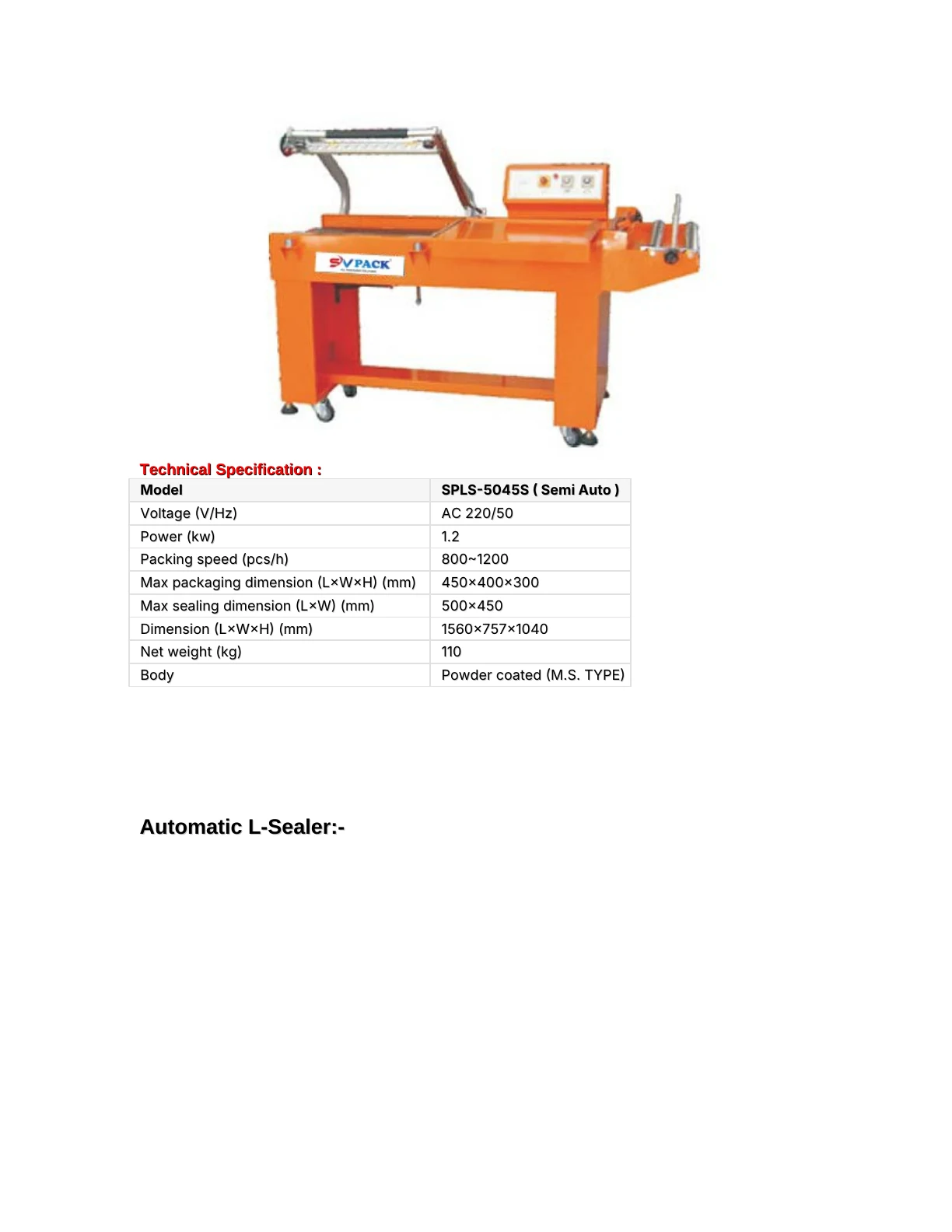

SVPACK catalogue, page 12. Full page text is available below the viewer.
Page 12 of 41

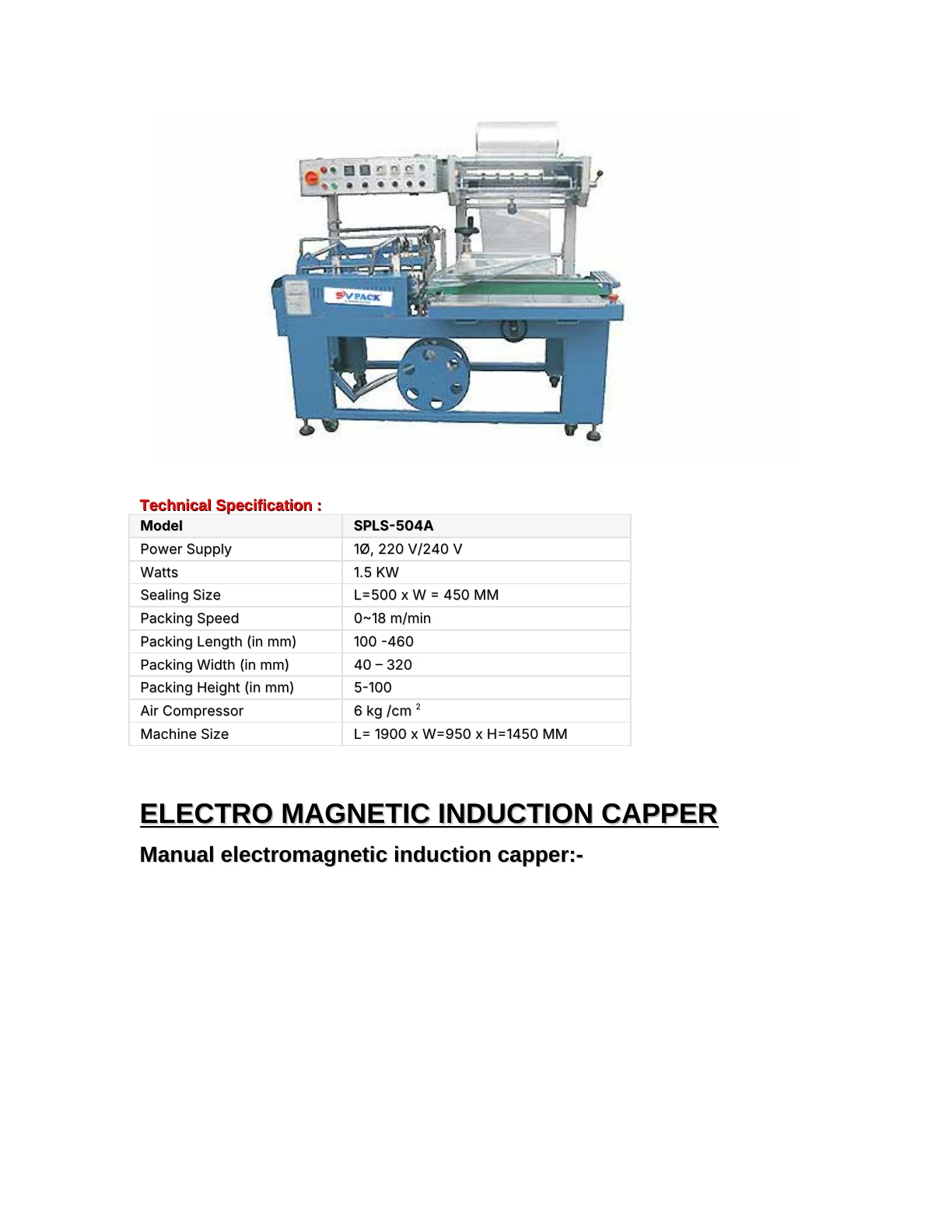

SVPACK catalogue, page 13. Full page text is available below the viewer.
Page 13 of 41

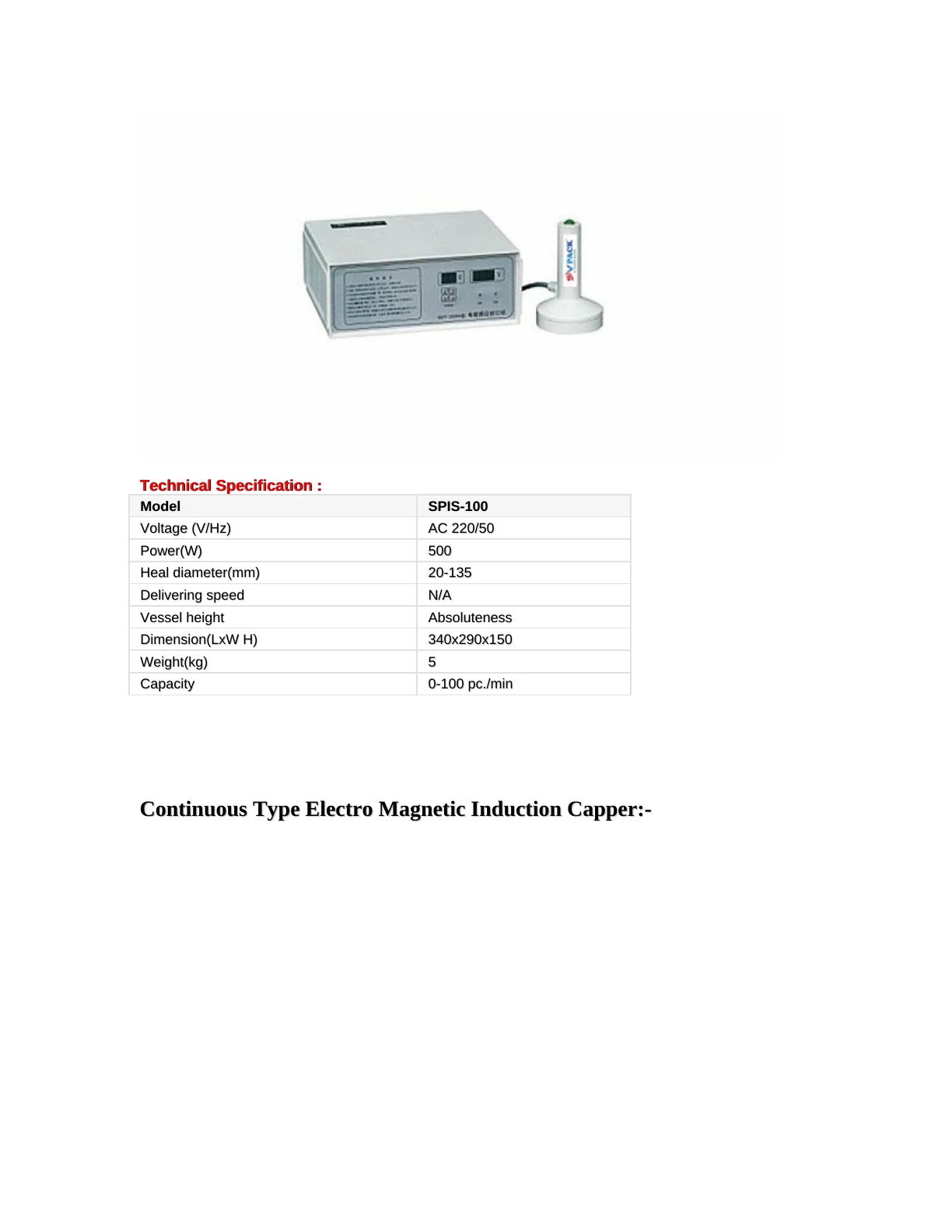

SVPACK catalogue, page 14. Full page text is available below the viewer.
Page 14 of 41

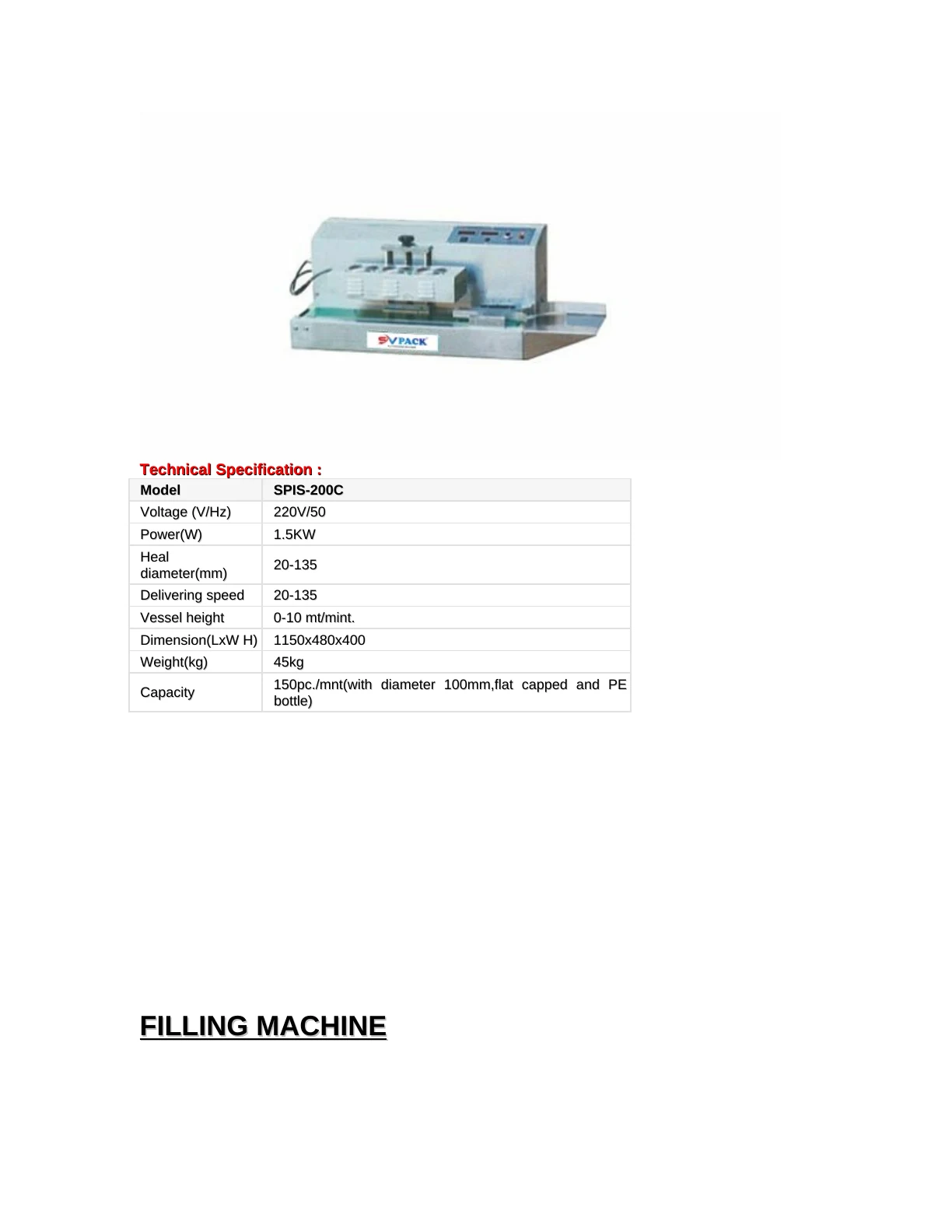

SVPACK catalogue, page 15. Full page text is available below the viewer.
Page 15 of 41

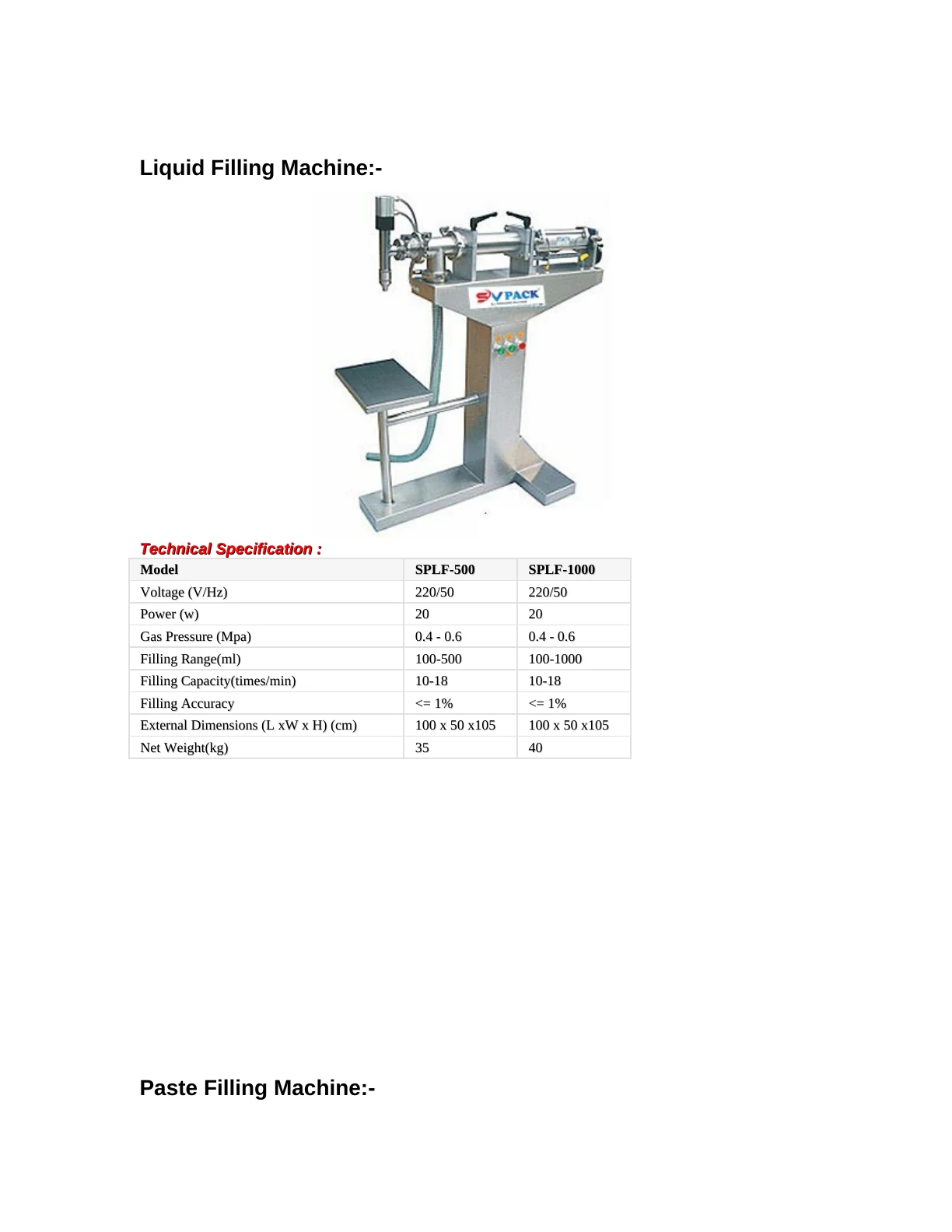

SVPACK catalogue, page 16. Full page text is available below the viewer.
Page 16 of 41

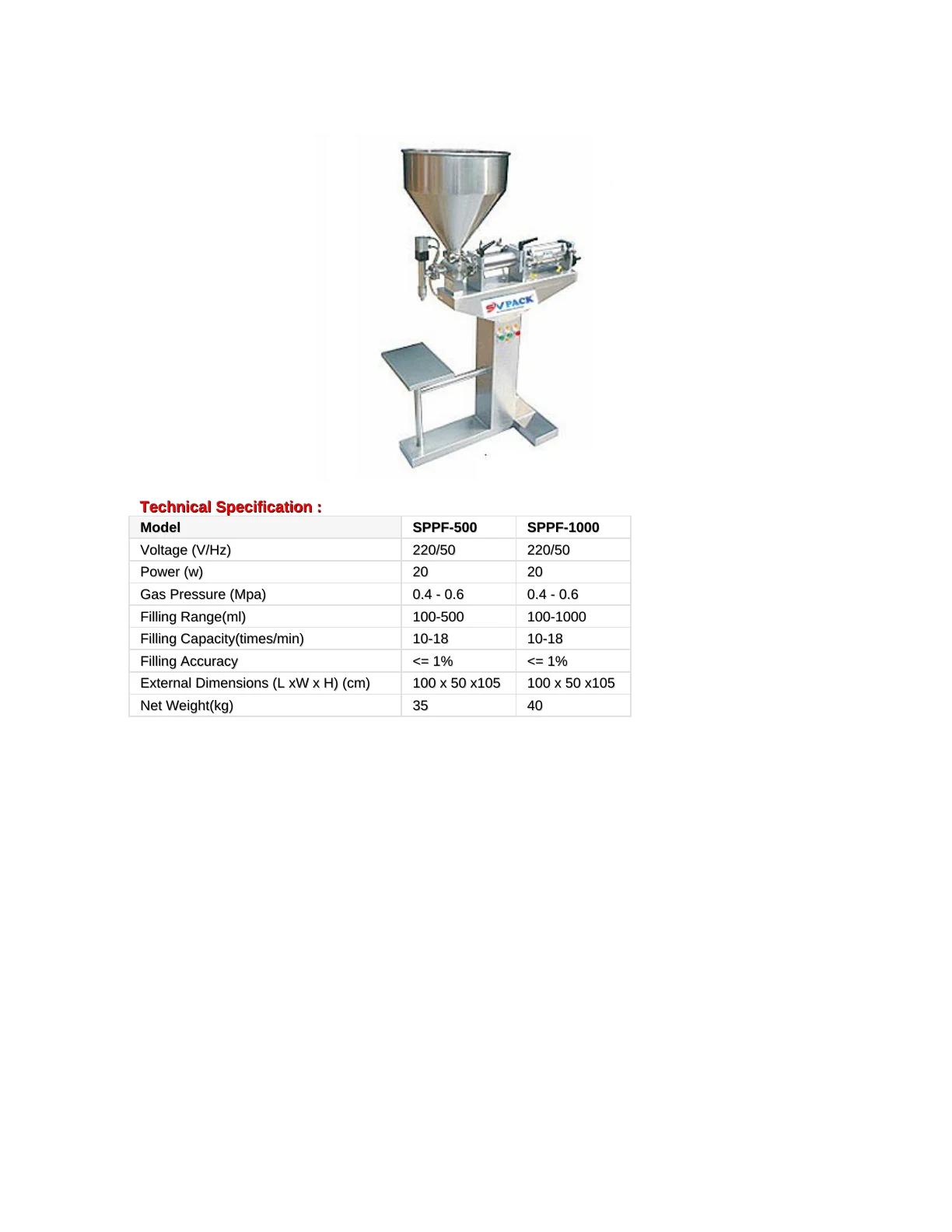

SVPACK catalogue, page 17. Full page text is available below the viewer.
Page 17 of 41

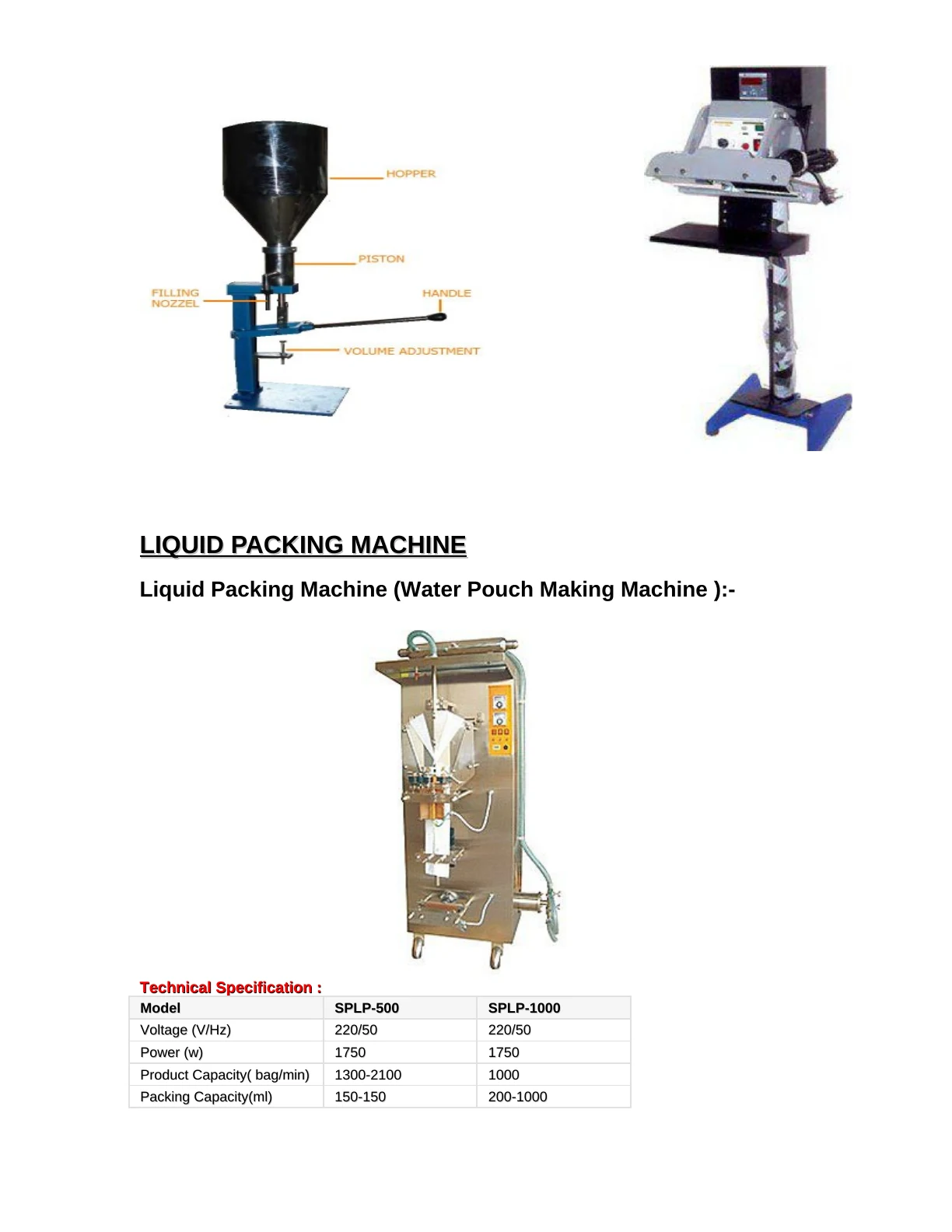

SVPACK catalogue, page 18. Full page text is available below the viewer.
Page 18 of 41

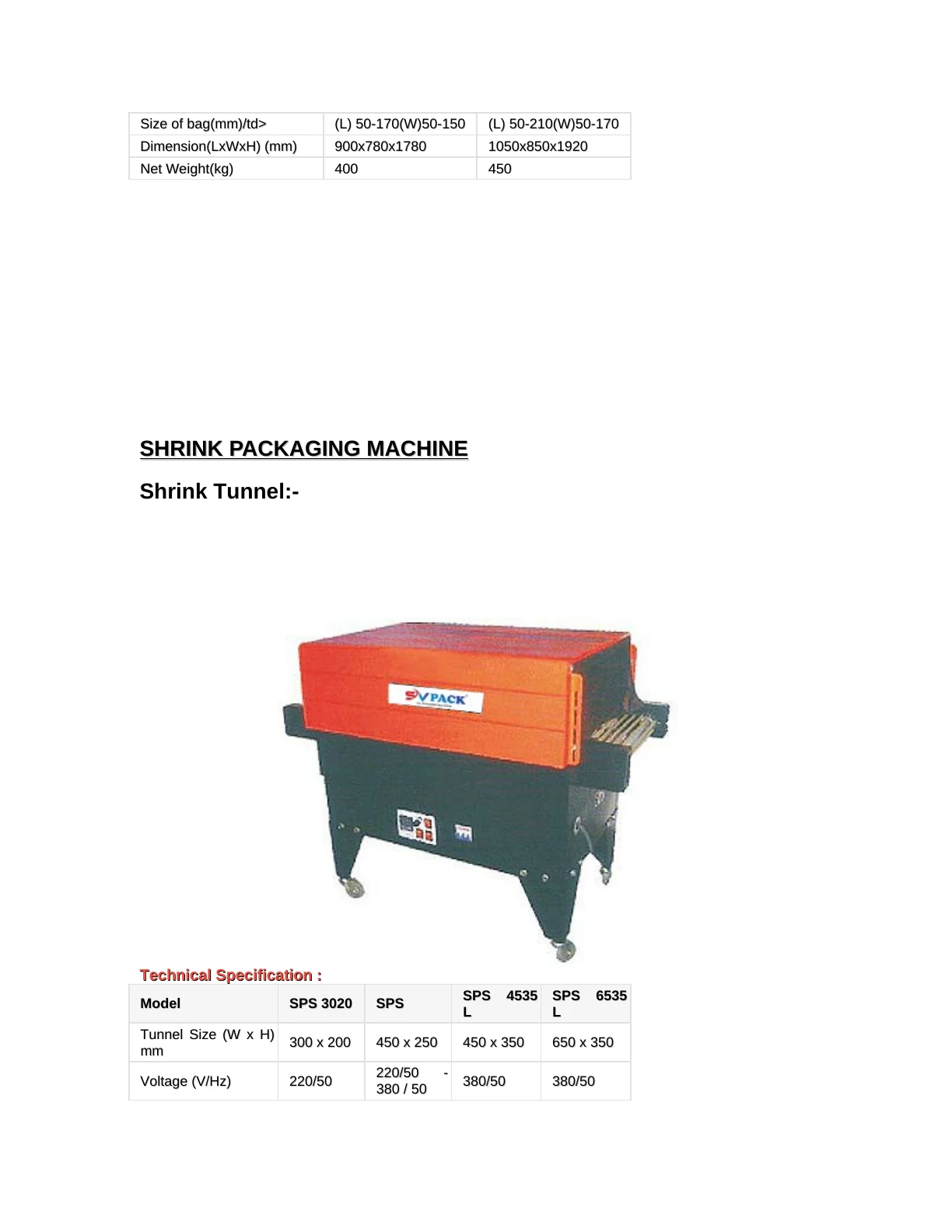

SVPACK catalogue, page 19. Full page text is available below the viewer.
Page 19 of 41

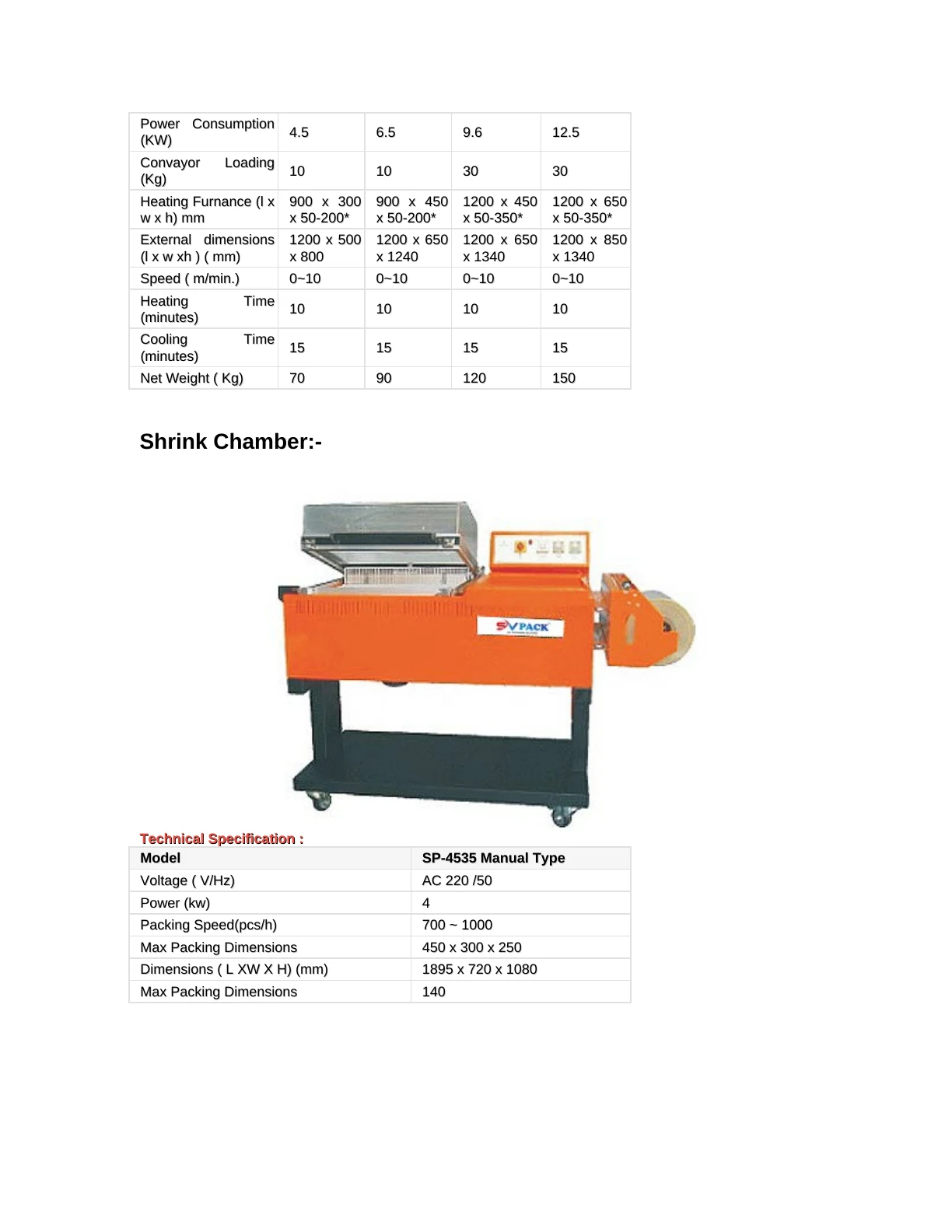

SVPACK catalogue, page 20. Full page text is available below the viewer.
Page 20 of 41

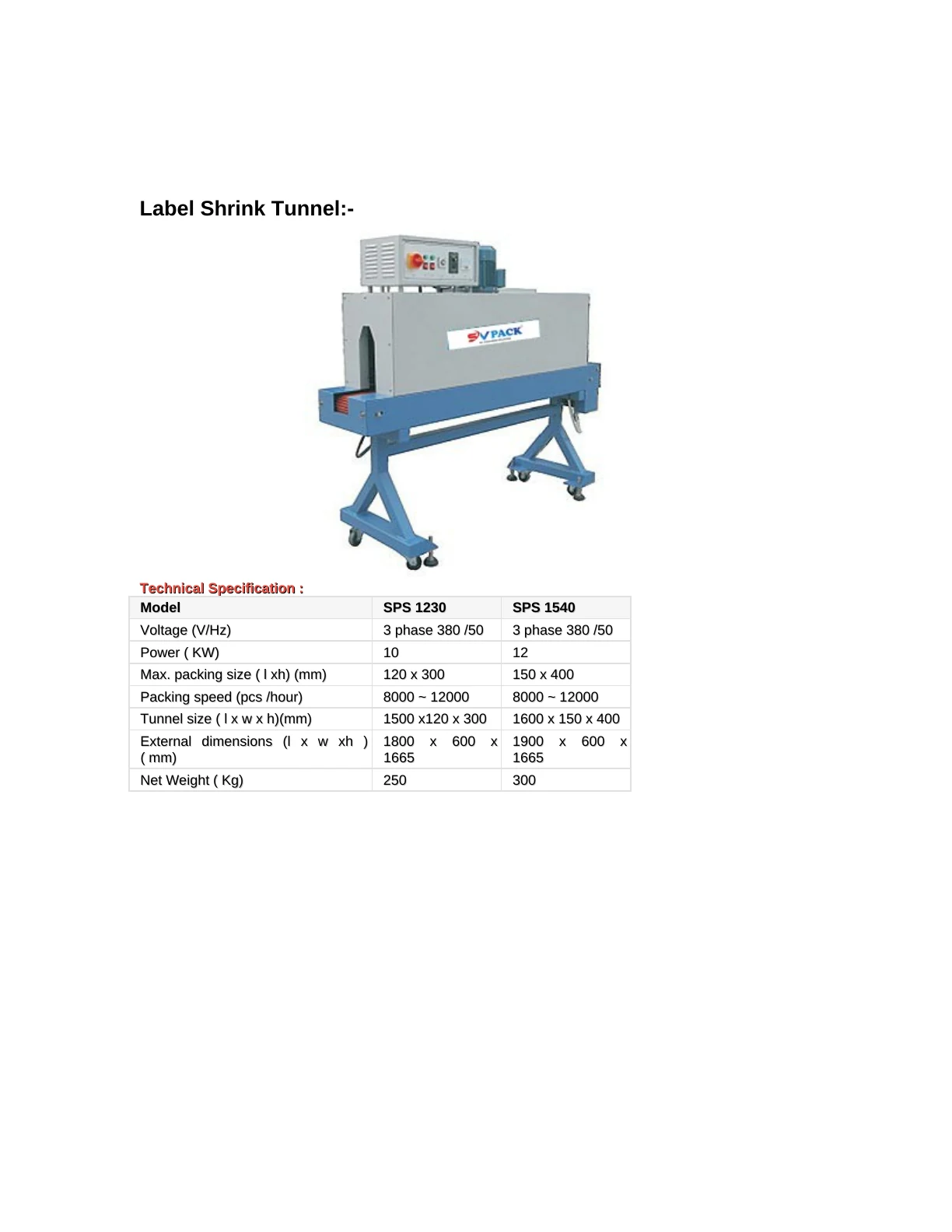

SVPACK catalogue, page 21. Full page text is available below the viewer.
Page 21 of 41

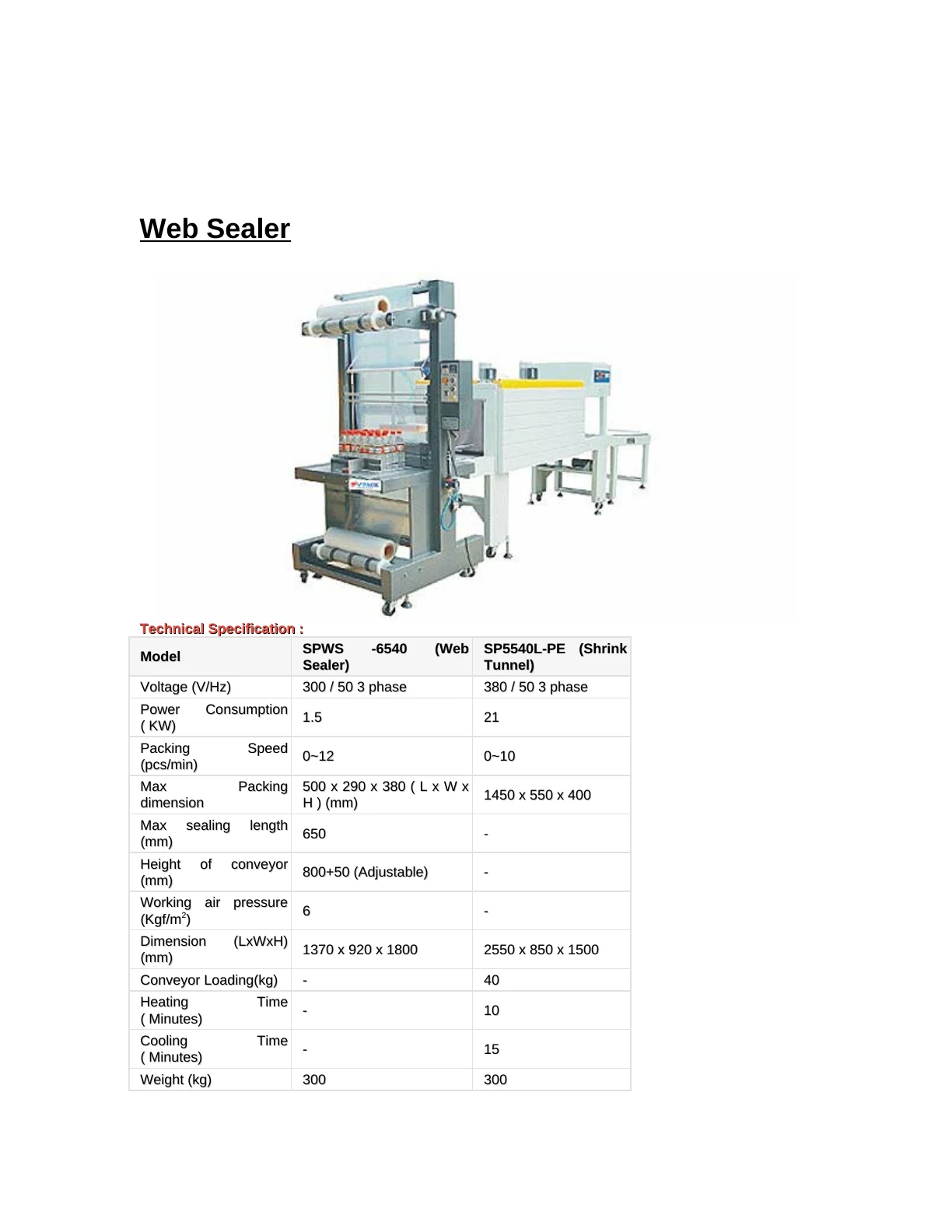

SVPACK catalogue, page 22. Full page text is available below the viewer.
Page 22 of 41

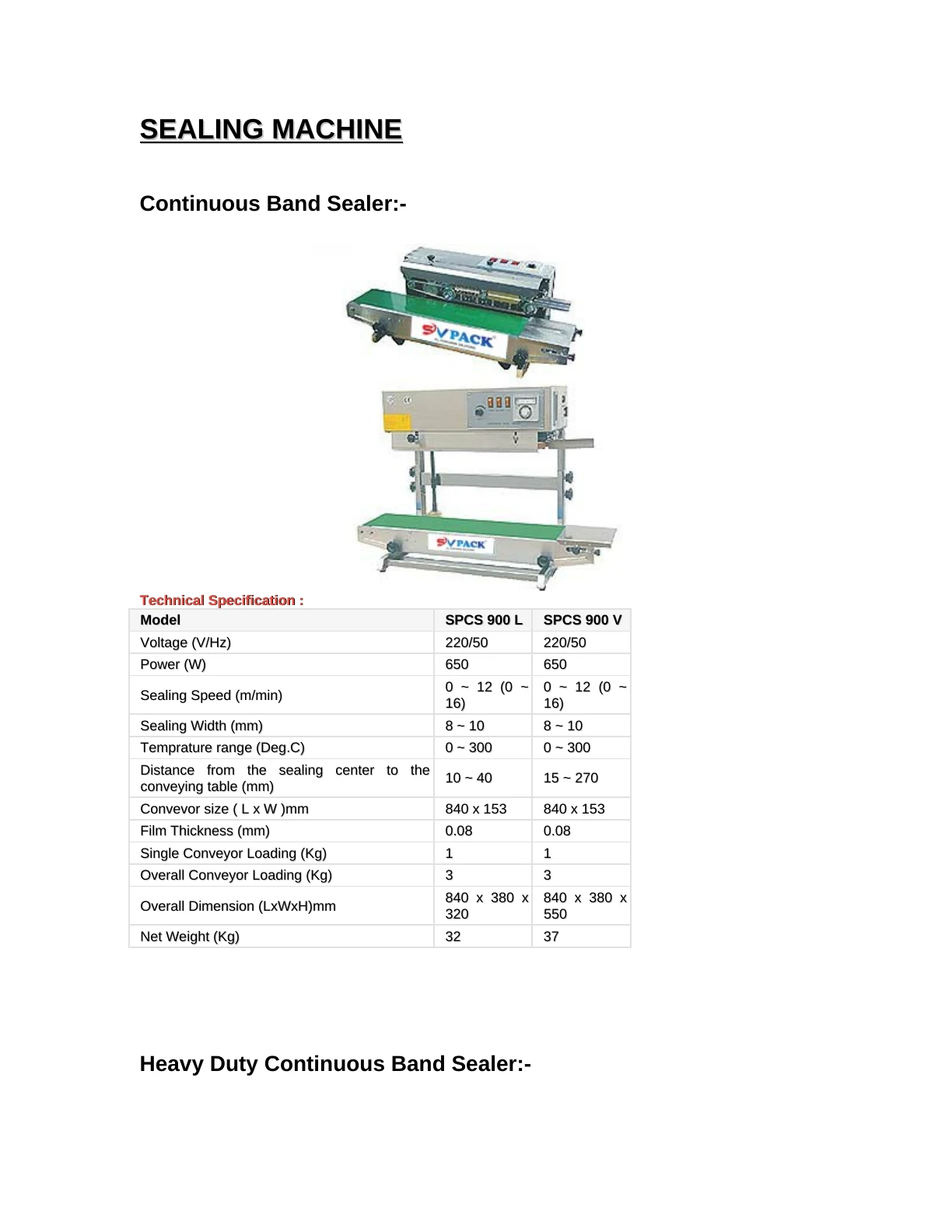

SVPACK catalogue, page 23. Full page text is available below the viewer.
Page 23 of 41

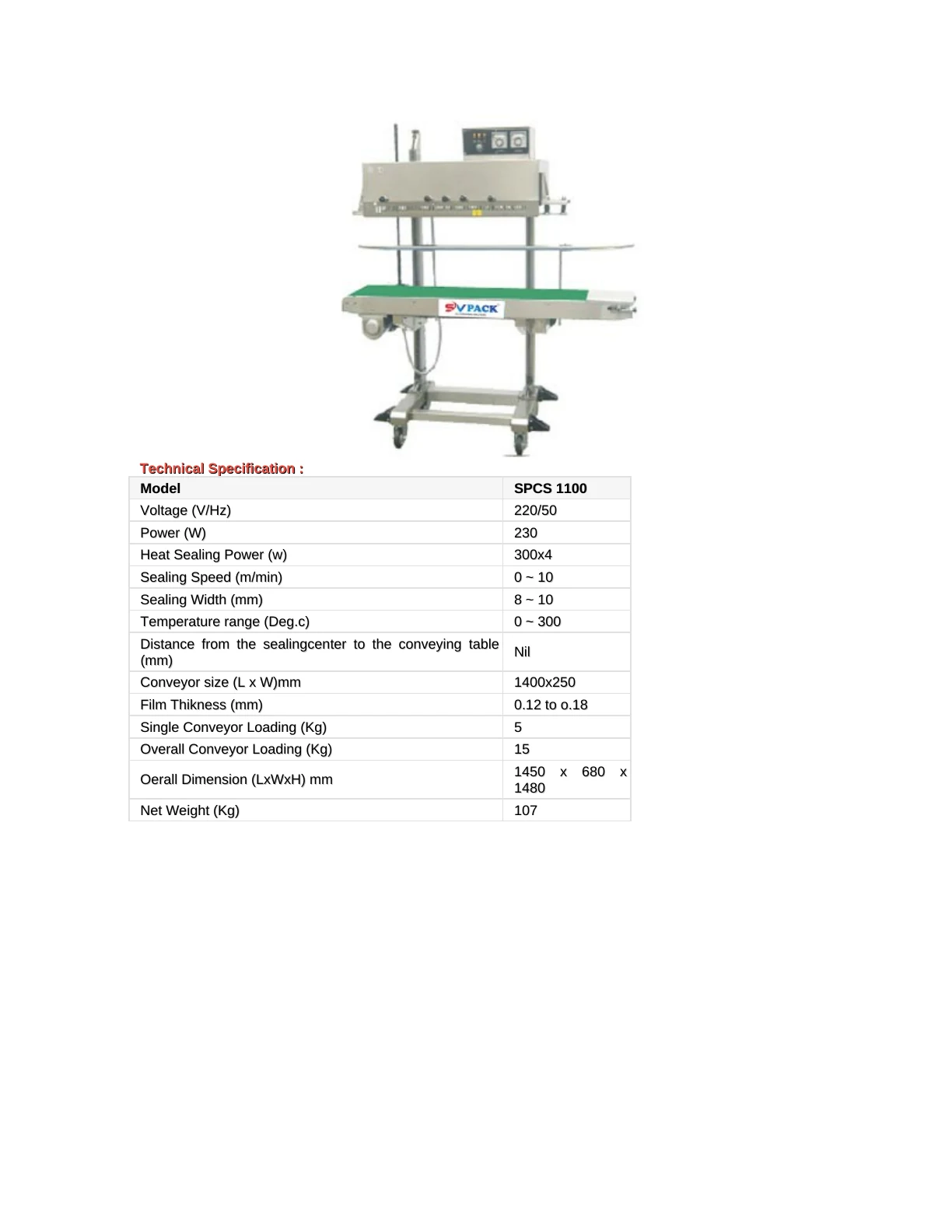

SVPACK catalogue, page 24. Full page text is available below the viewer.
Page 24 of 41

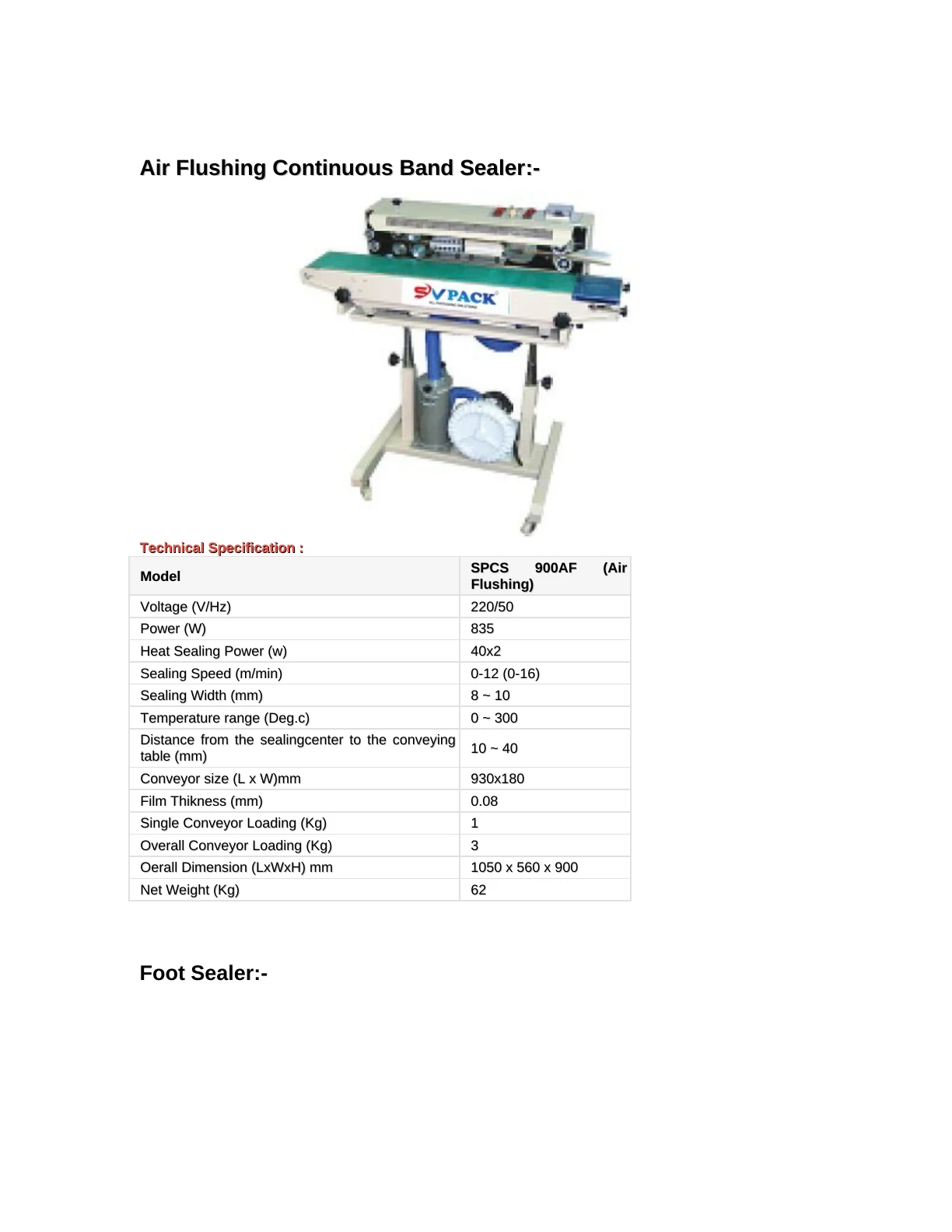

SVPACK catalogue, page 25. Full page text is available below the viewer.
Page 25 of 41

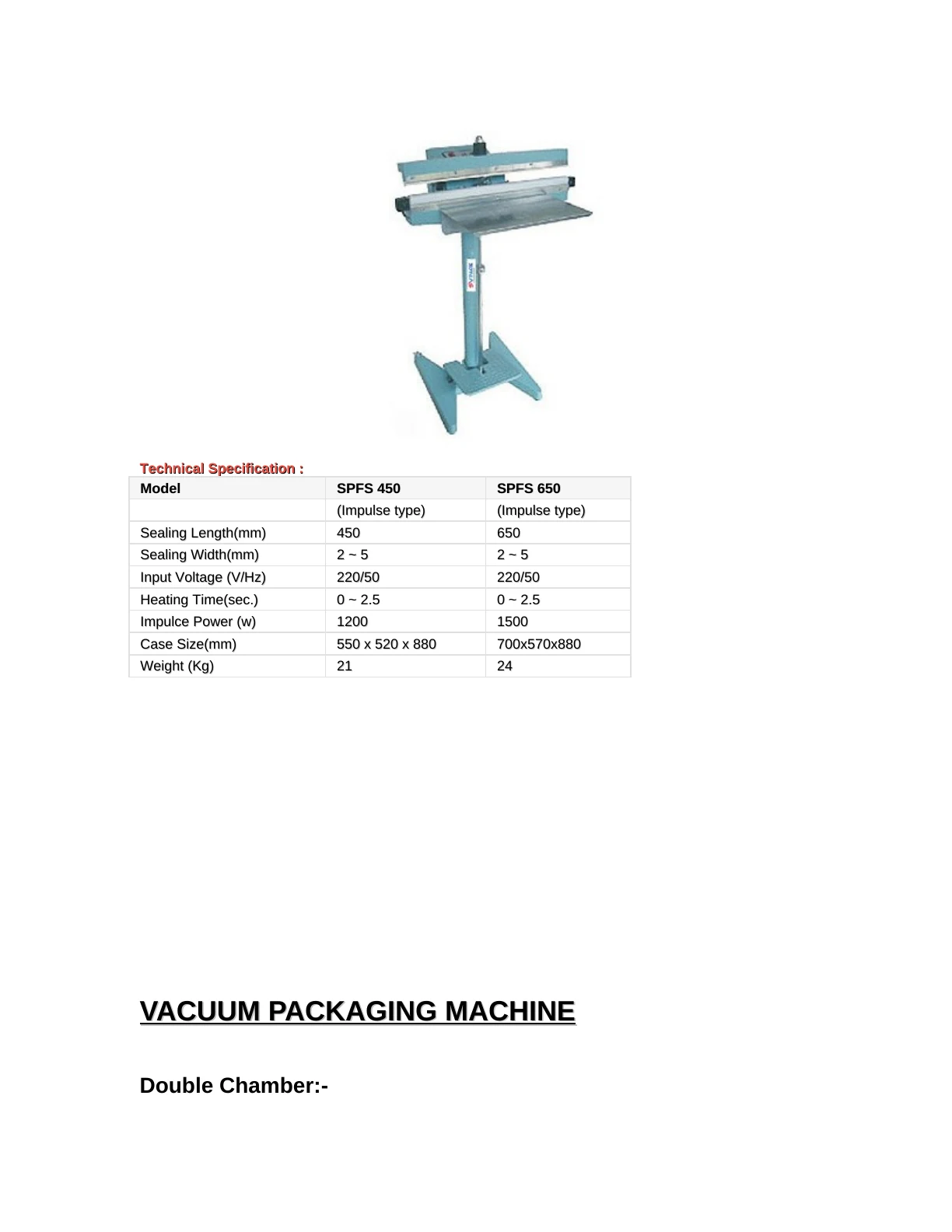

SVPACK catalogue, page 26. Full page text is available below the viewer.
Page 26 of 41

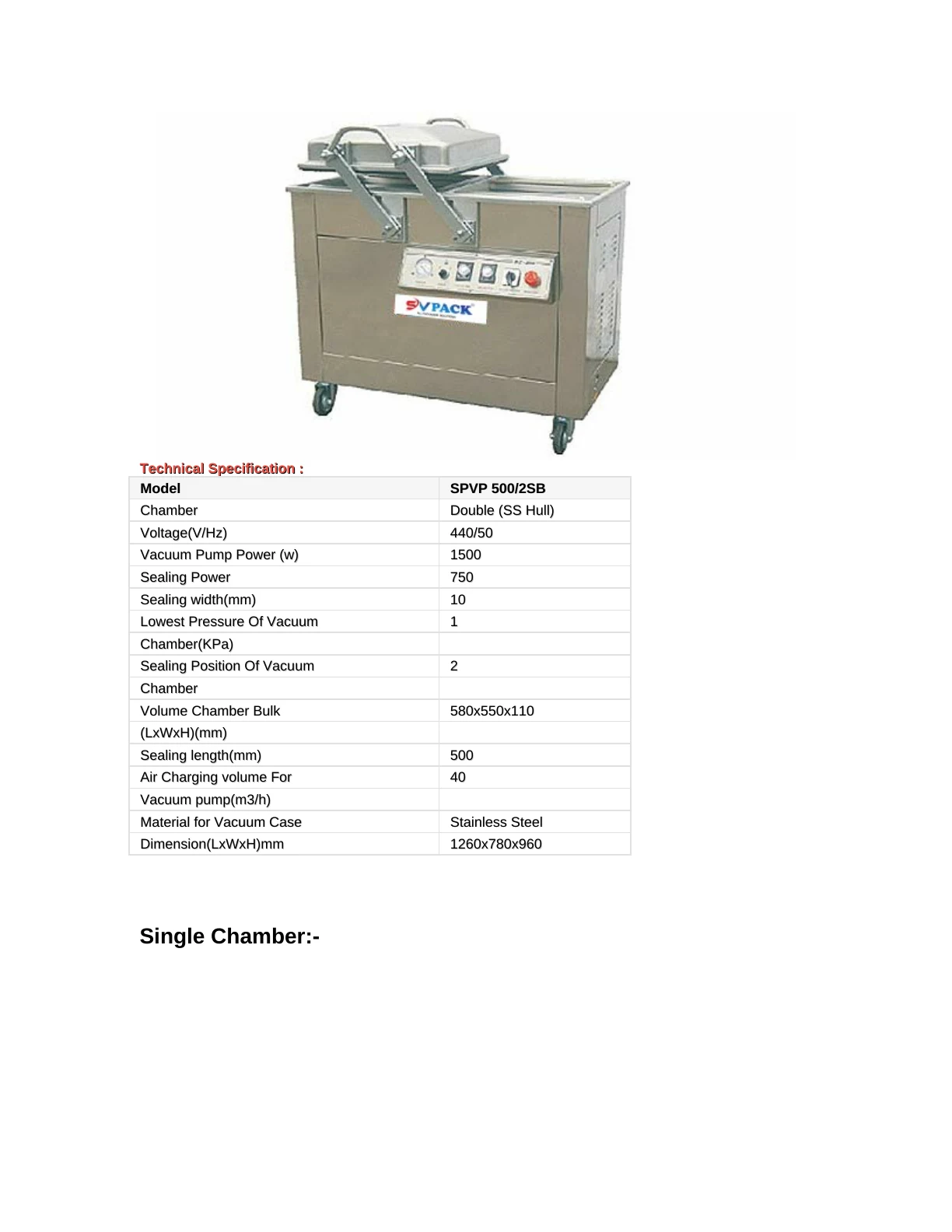

SVPACK catalogue, page 27. Full page text is available below the viewer.
Page 27 of 41

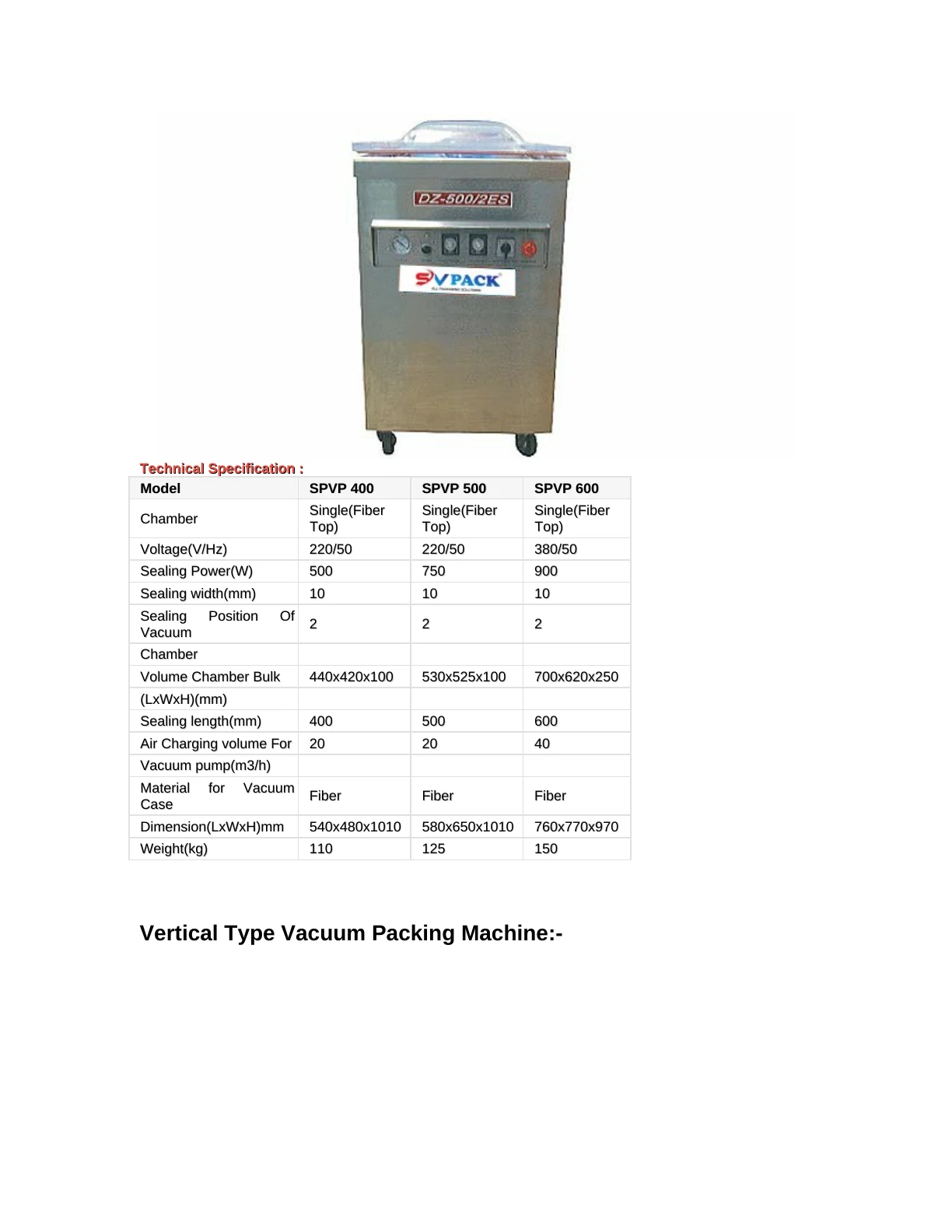

SVPACK catalogue, page 28. Full page text is available below the viewer.
Page 28 of 41

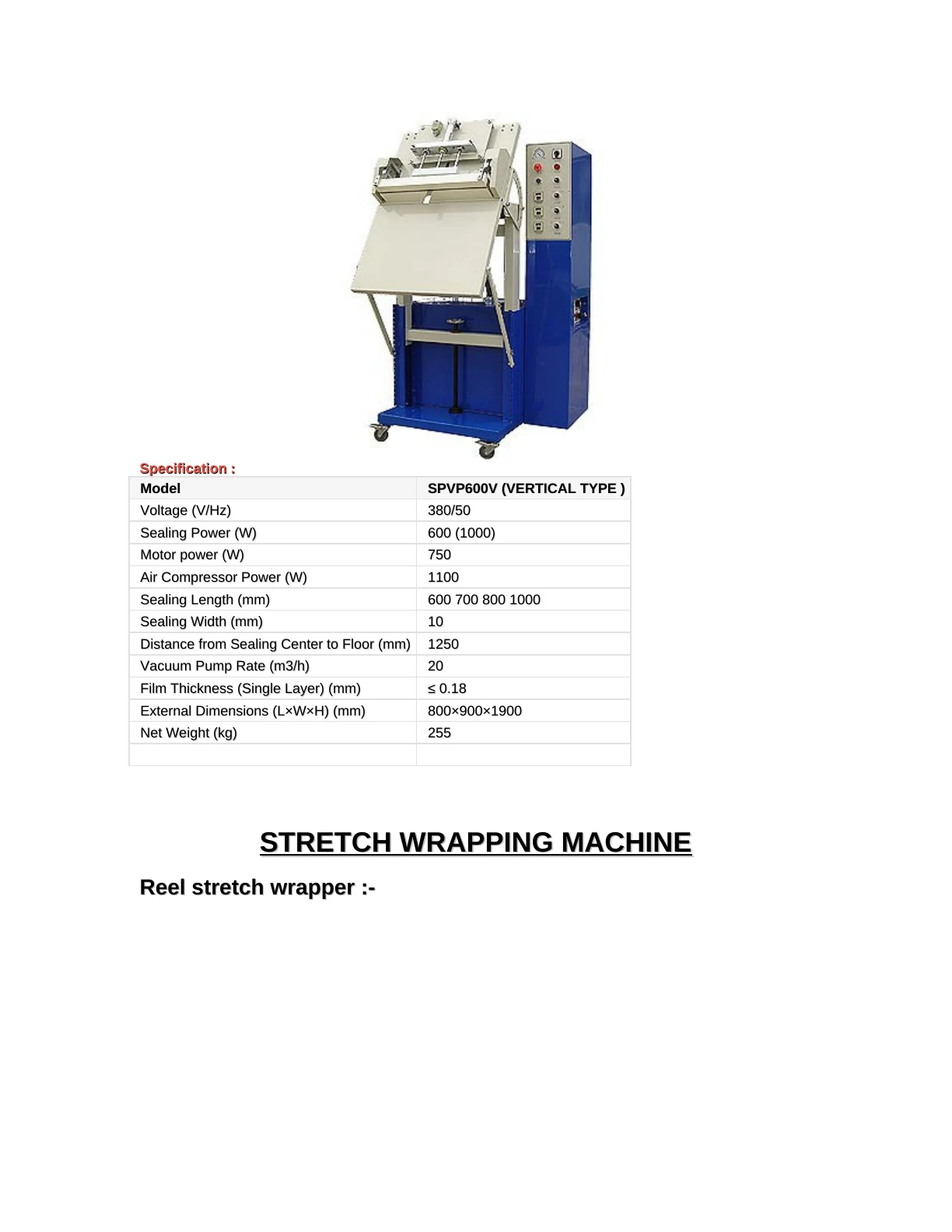

SVPACK catalogue, page 29. Full page text is available below the viewer.
Page 29 of 41

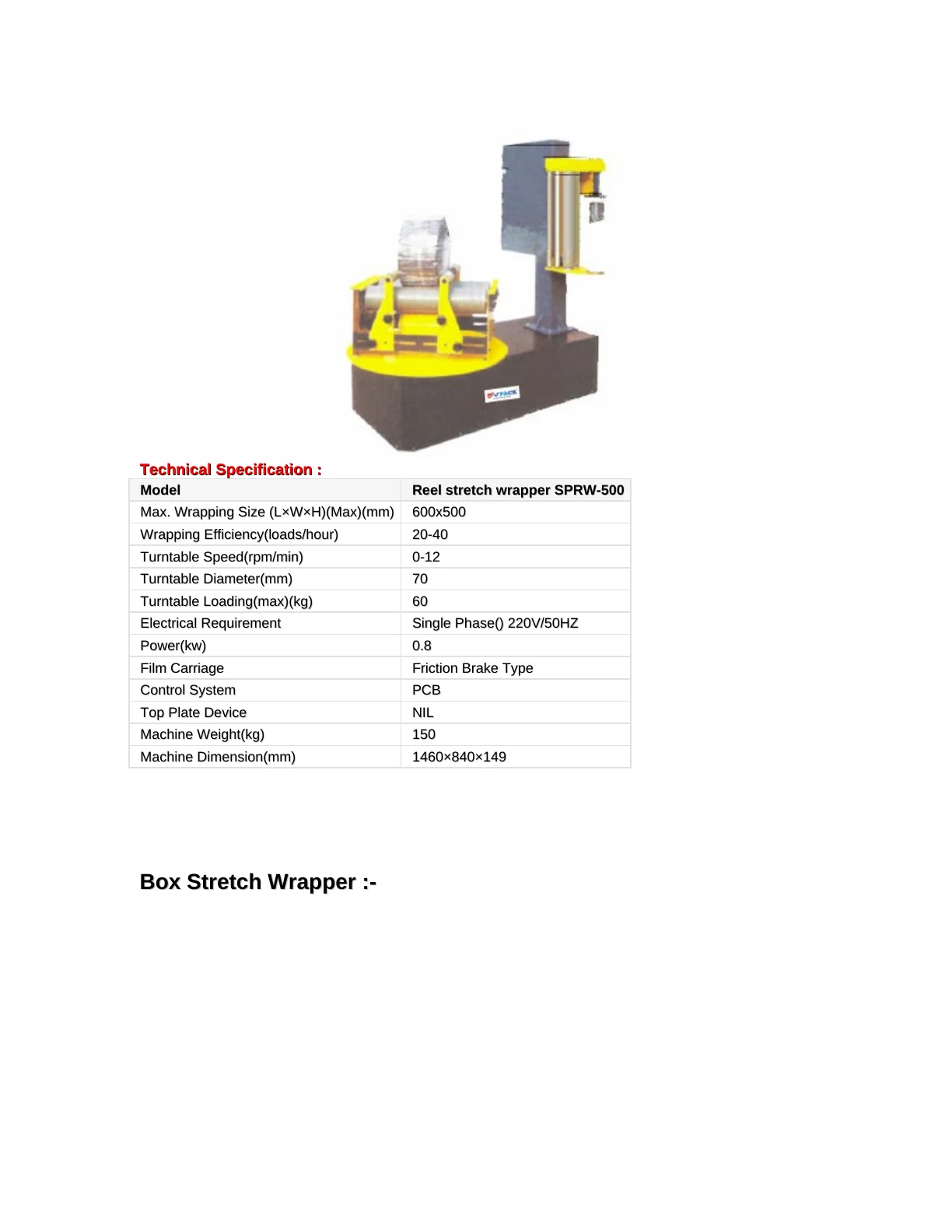

SVPACK catalogue, page 30. Full page text is available below the viewer.
Page 30 of 41

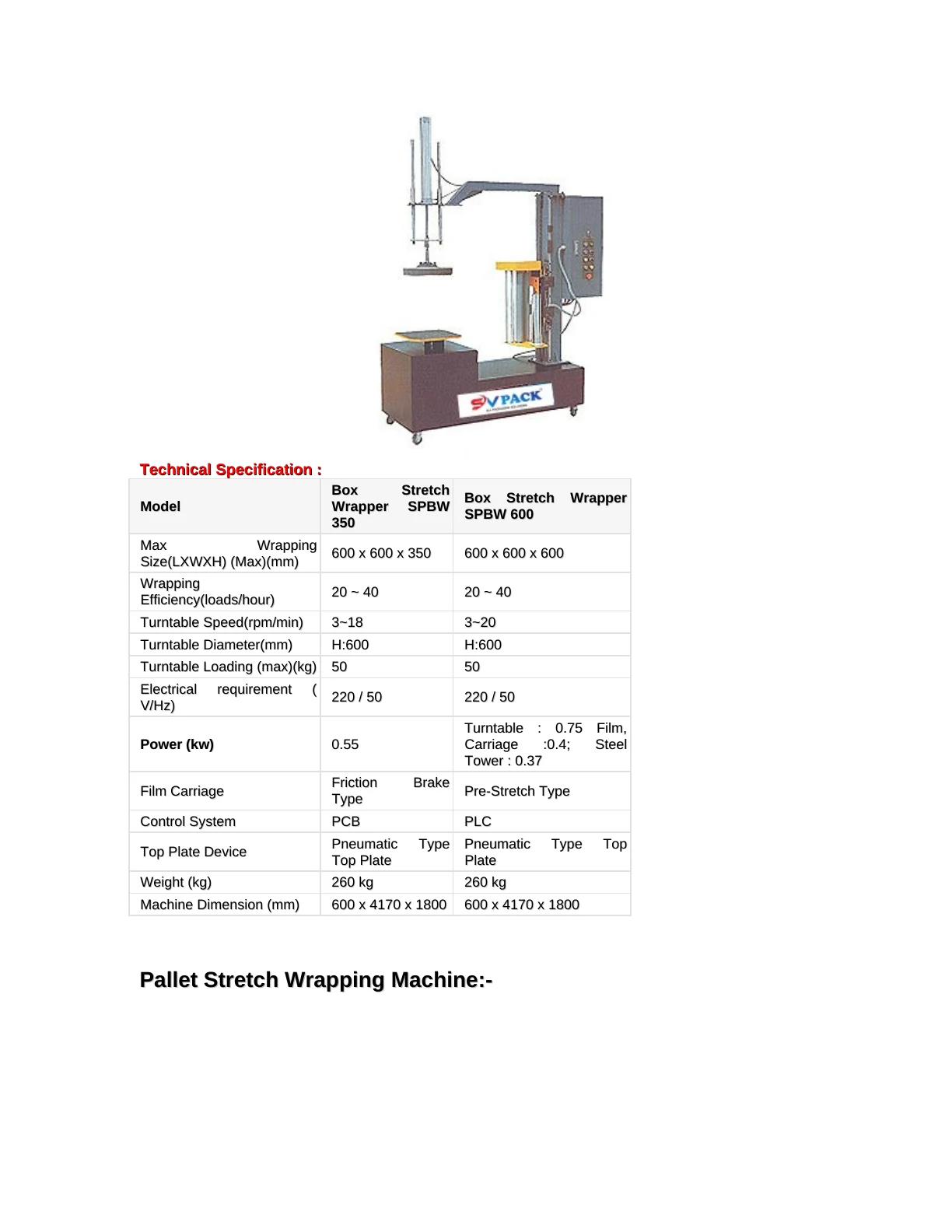

SVPACK catalogue, page 31. Full page text is available below the viewer.
Page 31 of 41

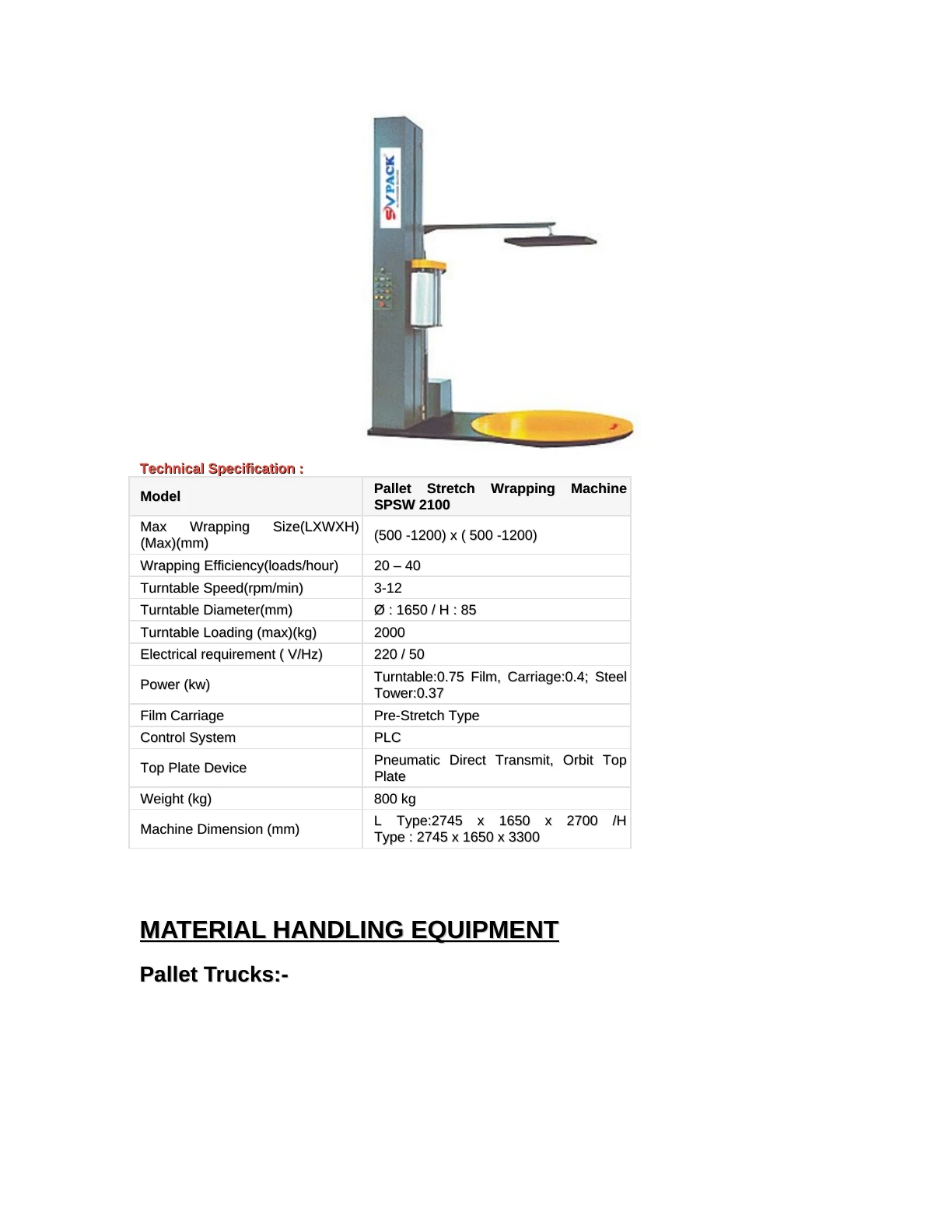

SVPACK catalogue, page 32. Full page text is available below the viewer.
Page 32 of 41

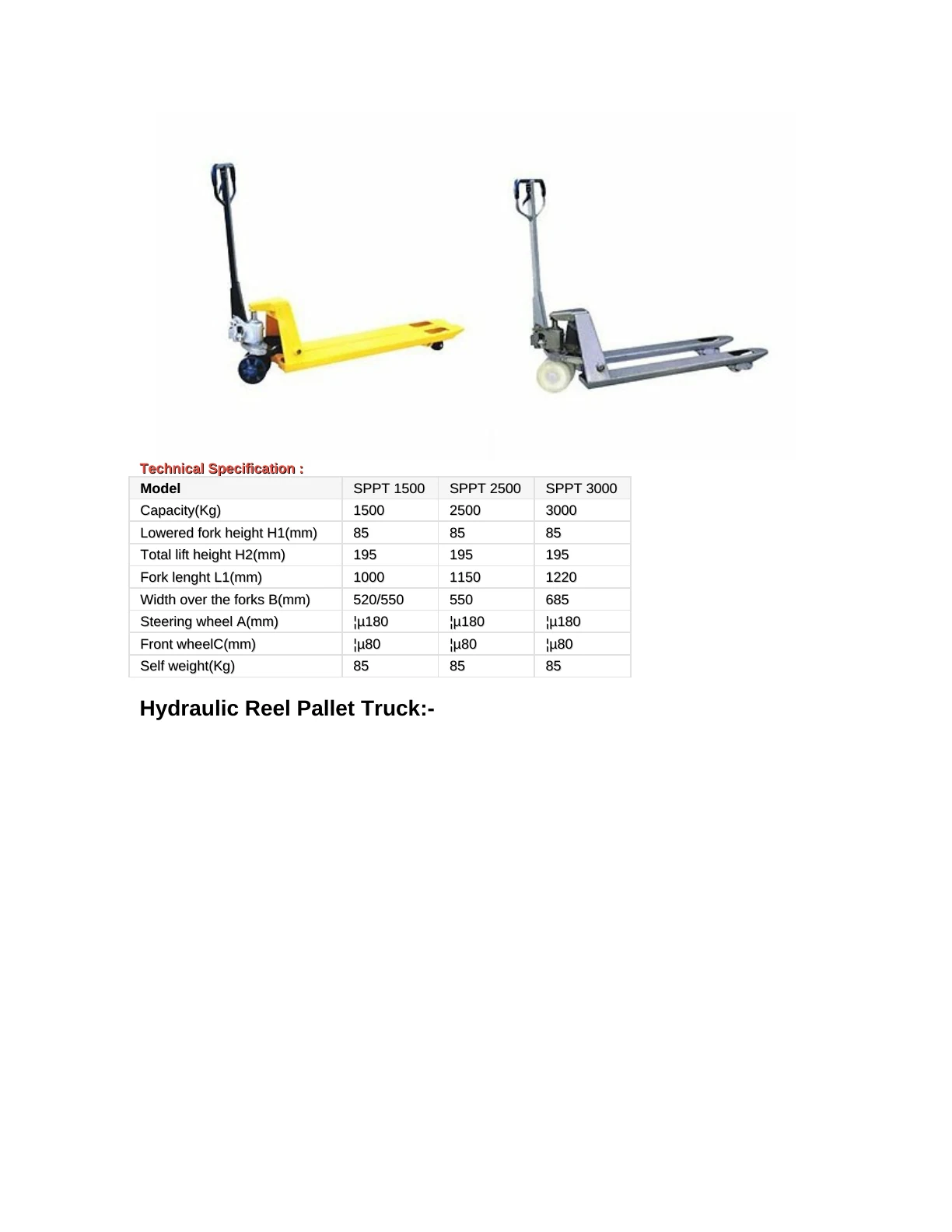

SVPACK catalogue, page 33. Full page text is available below the viewer.
Page 33 of 41

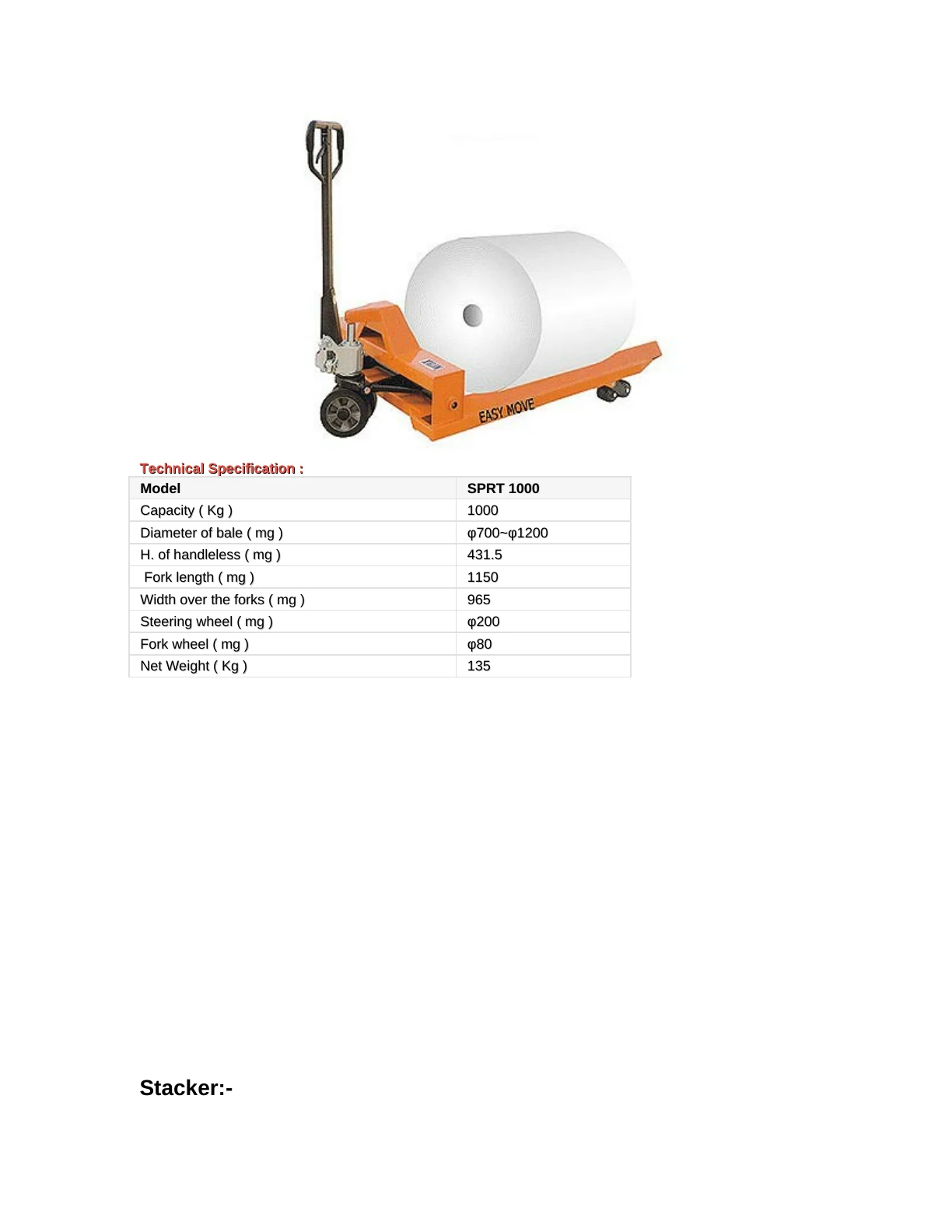

SVPACK catalogue, page 34. Full page text is available below the viewer.
Page 34 of 41

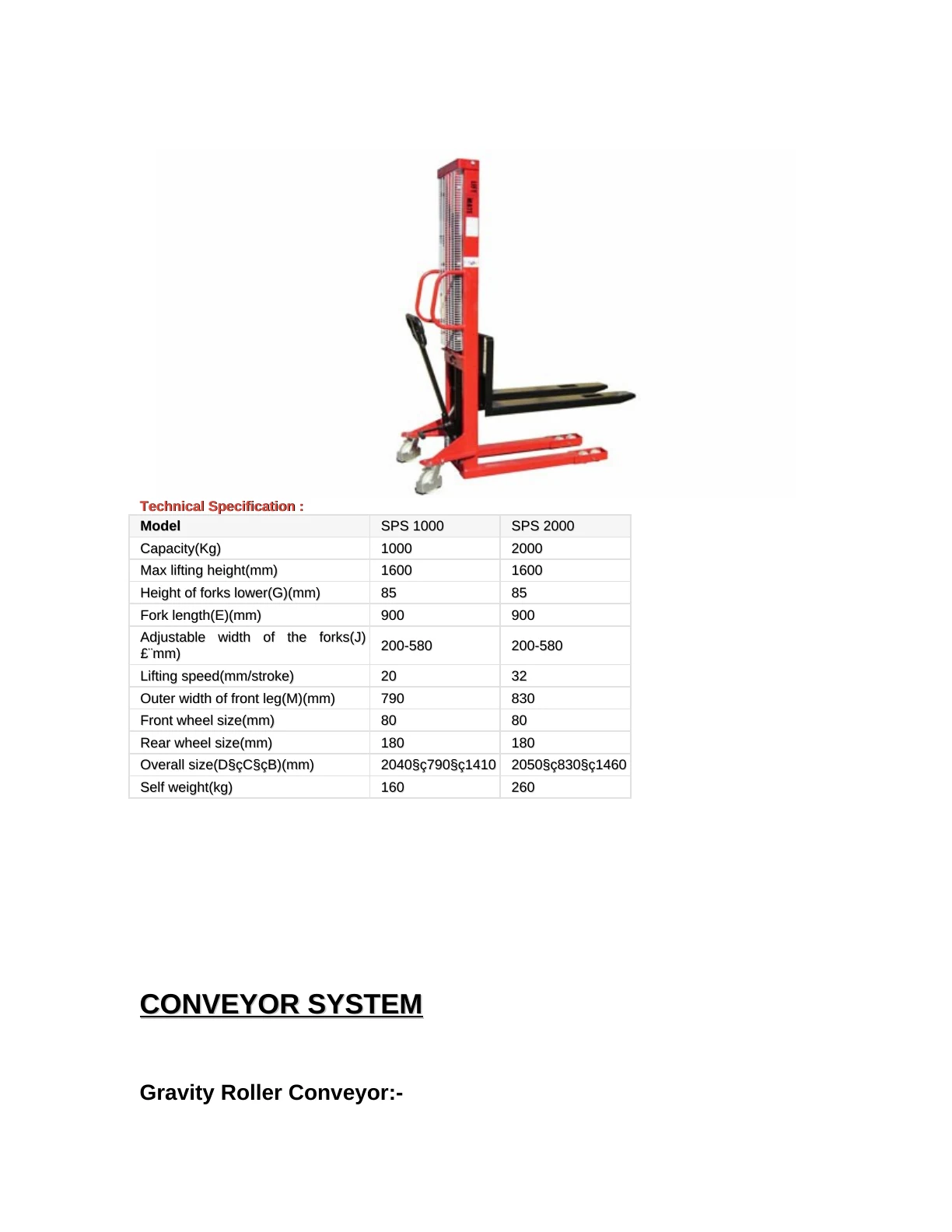

SVPACK catalogue, page 35. Full page text is available below the viewer.
Page 35 of 41

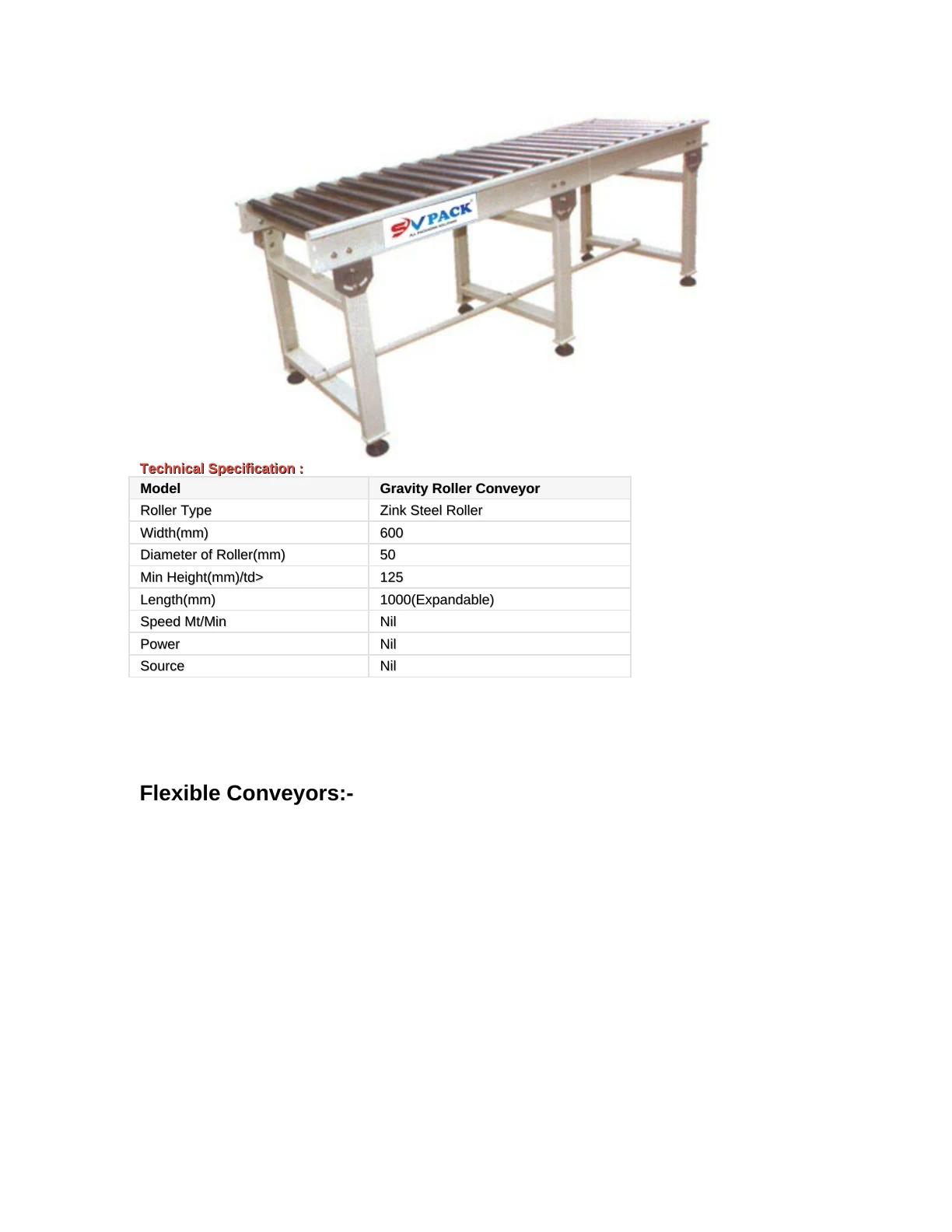

SVPACK catalogue, page 36. Full page text is available below the viewer.
Page 36 of 41

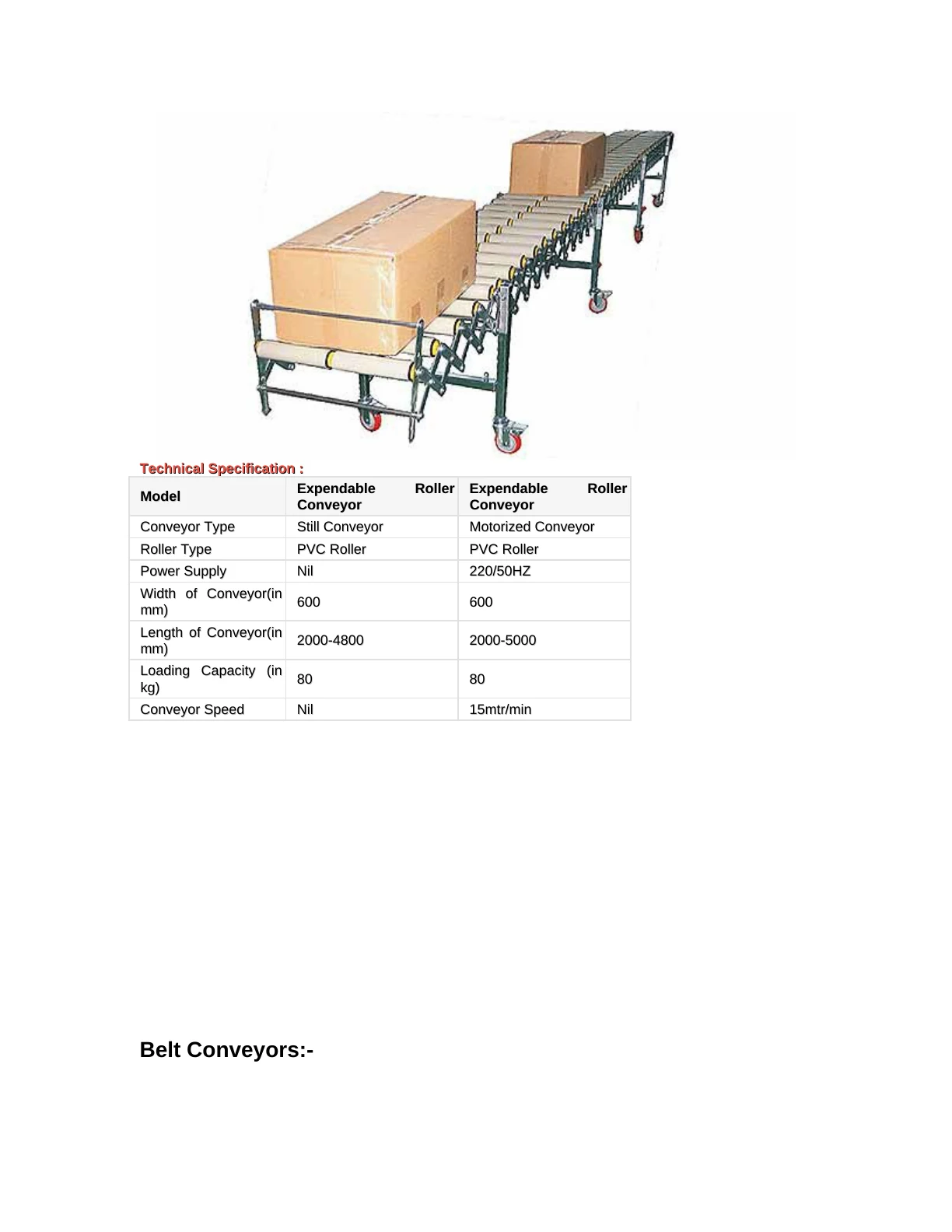

SVPACK catalogue, page 37. Full page text is available below the viewer.
Page 37 of 41

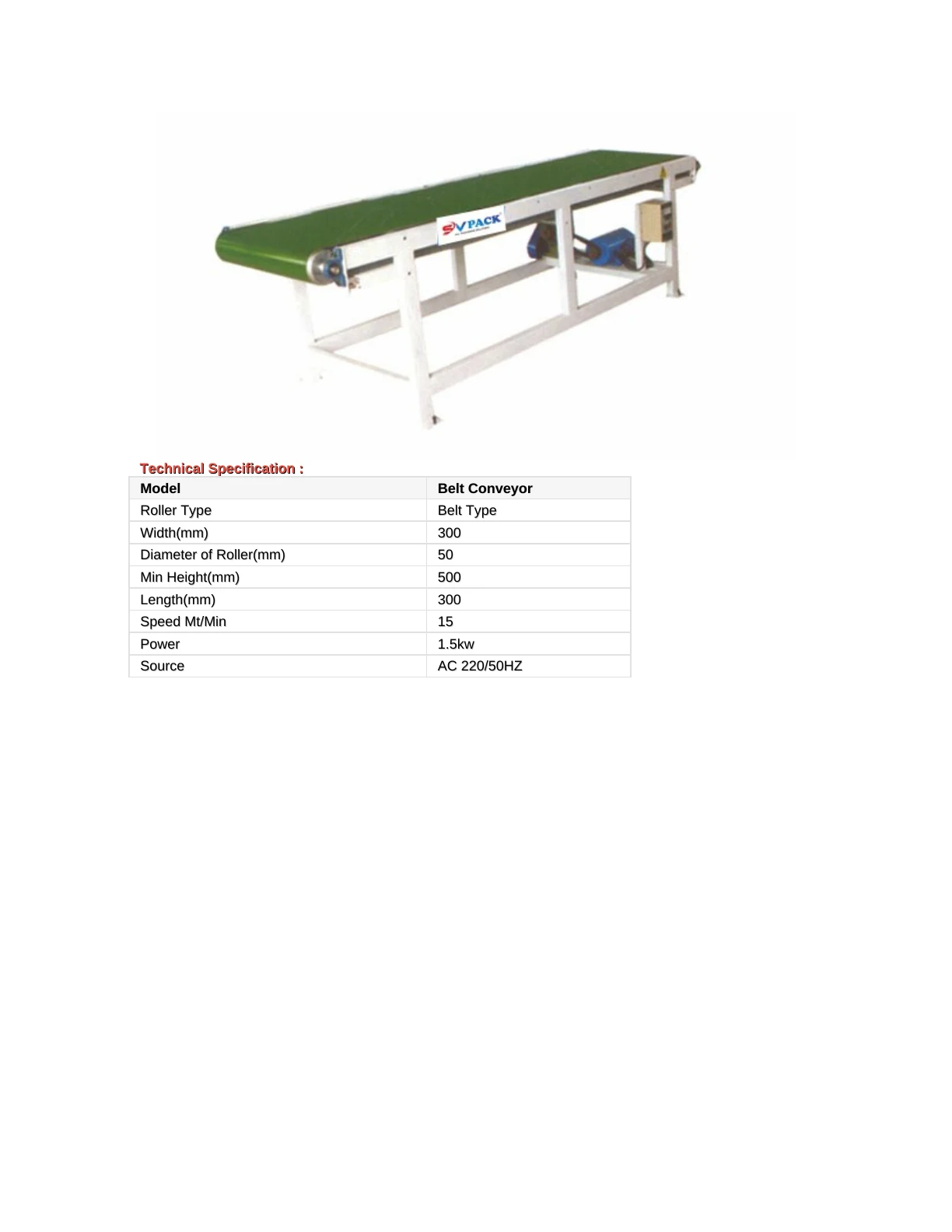

SVPACK catalogue, page 38. Full page text is available below the viewer.
Page 38 of 41

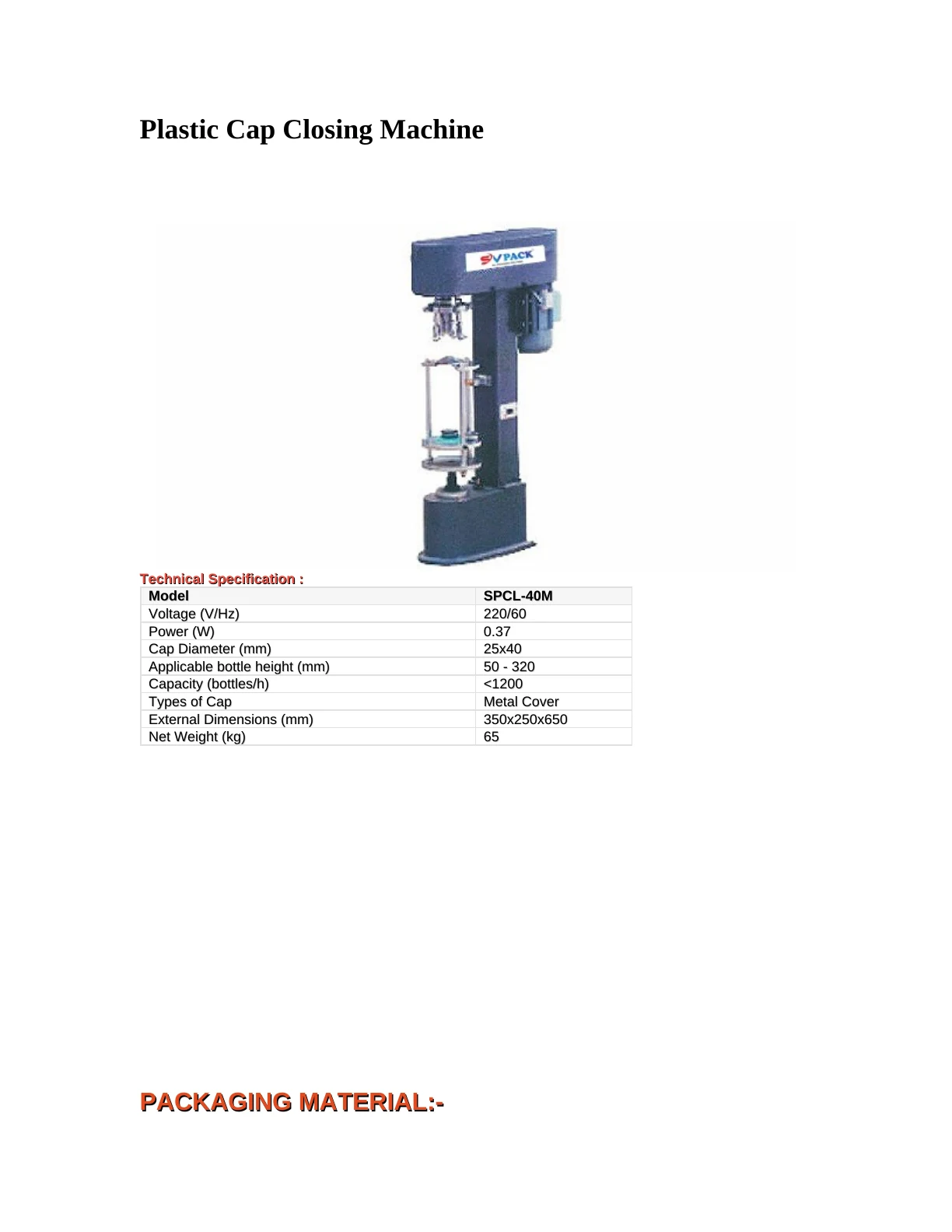

SVPACK catalogue, page 39. Full page text is available below the viewer.
Page 39 of 41

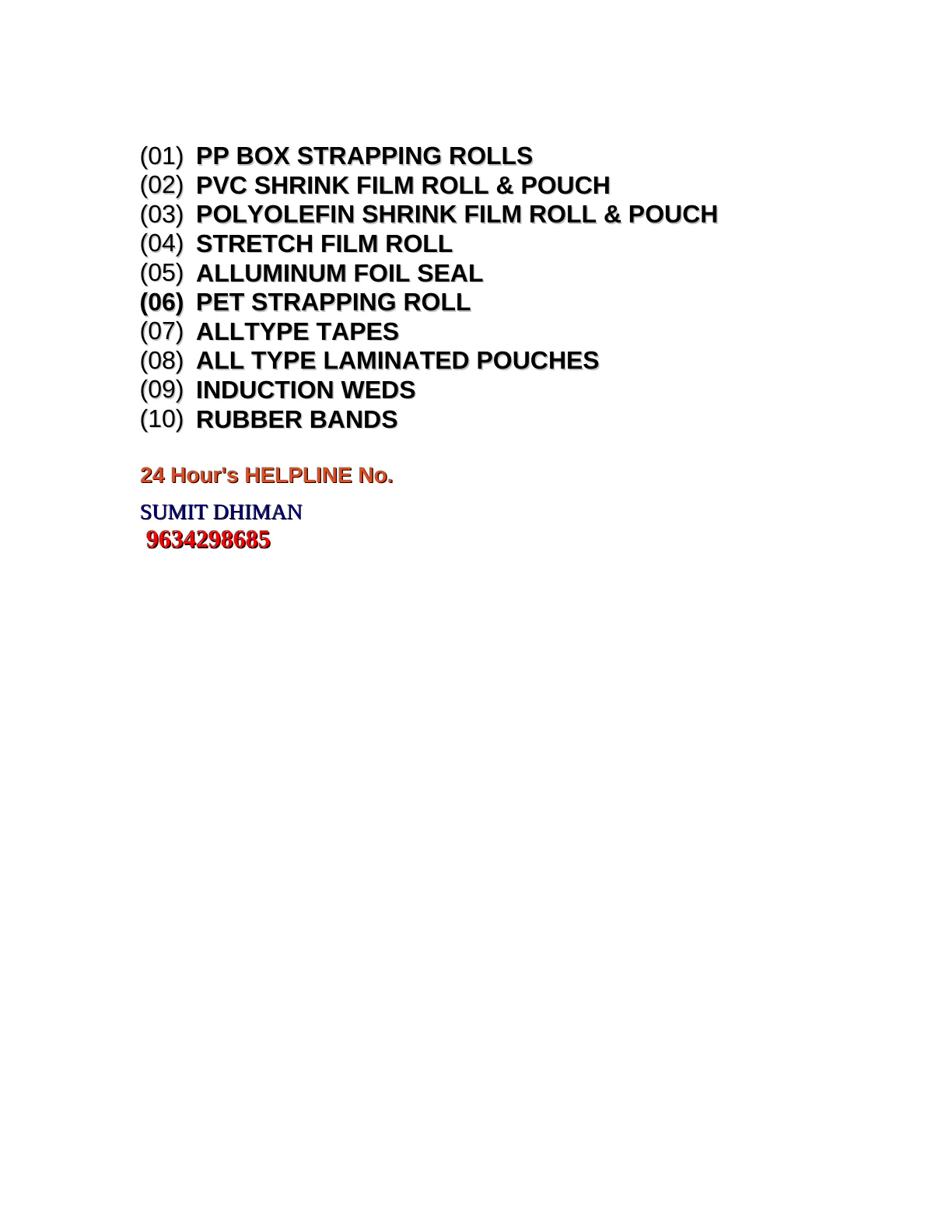

SVPACK catalogue, page 40. Full page text is available below the viewer.
Page 40 of 41
SVPACK catalogue, page 41. Full page text is available below the viewer.
Page 41 of 41

Page 1 of 41

Open original PDF
Read page 1 text

SHRI VISHWAKARMA PACKAGING SOLUTIONS (A PACKAGING HOUSE) NEAR NAUGAJAPEER, VILLAGE KUMHARHEDA, DEHRADUN ROAD, SAHARANPUR 247001 (UTTARP PRADESH) E-mail:-viswakarmapackaging16@gmail.com Mobile no :- 9634298685, 8923034571 STRAPPING MACHINE Automatic Strapping Machine:- Technical Specification : Model Automatic SVP101F Max Strap Size (mm) 800 x 600 Min Strap Size (mm) 80 x 50 Strapping Speed (seconds) 2 Strap Width (mm) 9 – 15 Strapping Force 25 – 700 Working Table Height (mm) 830 Power Source (V/Hz) 440/50,0.1.2HP External Dimensions (mm) 1420X650X1565 Weight (kg) 235
